HomeProductsIntegrated Circuits (ICs)Data Acquisition - Digital to Analog Converters (DAC)DAC6571IDBVT

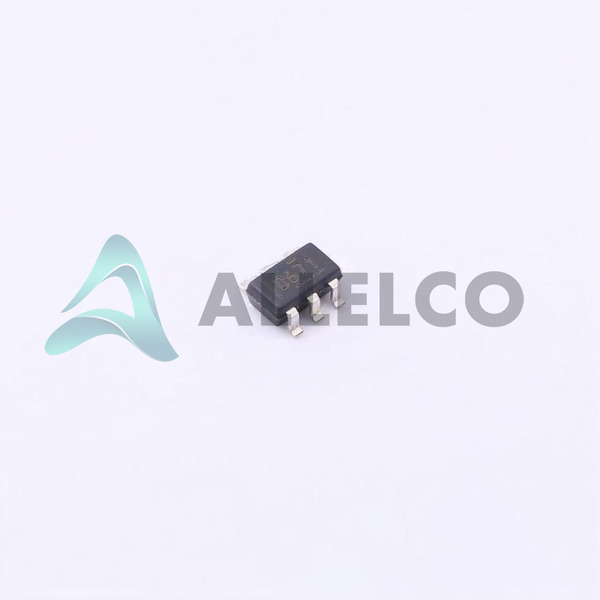

DAC6571IDBVT Image
Image may be representation.
See specifications for product details.
EXPRESS OPTION
Payment method

DAC6571IDBVT - Texas Instruments

Manufacturer Part Number
DAC6571IDBVT
Manufacturer
Texas Instruments
Allelco Part Number
32D-DAC6571IDBVT
ECAD Model
Parts Description
IC DAC 10BIT V-OUT SOT23-6
Package
SOT-23-6
Data sheet
DAC6571IDBVT.pdf
RoHs Status
ROHS3 Compliant
Our certification
In stock: 26448

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

DAC6571IDBVT Tech Specifications
Texas Instruments - DAC6571IDBVT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - DAC6571IDBVT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Digital 2.7V ~ 5.5V
Voltage - Supply, Analog 2.7V ~ 5.5V
Supplier Device Package SOT-23-6
Settling Time 9µs
Series -
Reference Type Supply
Package / Case SOT-23-6
Package Tape & Reel (TR)
Output Type Voltage - Buffered
Product Attribute Attribute Value
Operating Temperature -40°C ~ 105°C
Number of D/A Converters 1
Number of Bits 10
Mounting Type Surface Mount
INL/DNL (LSB) ±2 (Max), ±0.5 (Max)
Differential Output No
Data Interface I²C
Base Product Number DAC6571
Architecture String DAC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

DAC6571IDBVT

Manufacturer

Texas Instruments

Introduction

The DAC6571IDBVT is a 10-bit digital-to-analog converter from Texas Instruments, suitable for converting digital data into an analog output.

Product Features and Performance

10-bit resolution

Single D/A converter

Settling time: 9µs

Buffered Voltage Output

I2C Data Interface

String DAC architecture

Operates with both analog and digital power supplies ranging from 2.7V to 5.5V

Suitable for operation in temperatures from -40°C to 105°C

Product Advantages

High resolution leading to precise output

Fast settling time enhances response speed

Buffered output mitigates output loading issues

Flexible power supply compatibility

Key Technical Parameters

Number of Bits: 10

Settling Time: 9µs

Voltage - Supply, Analog: 2.7V ~ 5.5V

Voltage - Supply, Digital: 2.7V ~ 5.5V

Temperature Range: -40°C ~ 105°C

Quality and Safety Features

Robust operation over a wide range of temperatures

Precision controlled with INL/DNL specifications

Compatibility

Compatible with I2C interface

Suitable for use in SOT-23-6 package applications

Application Areas

Precision measurement systems

Data acquisition systems

Industrial automation

Product Lifecycle

Active status, regularly available with no imminent discontinuation

Several Key Reasons to Choose This Product

High-resolution 10-bit output for accurate analog representation

Fast output settling time supports rapid system responses

I2C interface compatibility simplifies integration into digital systems

Operates across a broad supply voltage range facilitating use in varied environments

Buffered output minimizes external influences on the output signal

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments DAC6571IDBVT

Product Attribute DAC6571IDBVT DAC6578SPW DAC6571IDBVR DAC6571IDBVRG4
Part Number DAC6571IDBVT DAC6578SPW DAC6571IDBVR DAC6571IDBVRG4
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package SOT-23-6 16-TSSOP SOT-23-6 SOT-23-6
Differential Output No No No No
Voltage - Supply, Analog 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Number of Bits 10 10 10 10
Data Interface I²C I²C I²C I²C
Reference Type Supply External Supply Supply
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered
Voltage - Supply, Digital 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Package / Case SOT-23-6 16-TSSOP (0.173', 4.40mm Width) SOT-23-6 SOT-23-6
Architecture String DAC String DAC String DAC String DAC
Base Product Number DAC6571 DAC6578 DAC6571 DAC6571
INL/DNL (LSB) ±2 (Max), ±0.5 (Max) ±0.06, ±0.03 ±2 (Max), ±0.5 (Max) ±2 (Max), ±0.5 (Max)
Series - - - -
Number of D/A Converters 1 8 1 1
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Settling Time 9µs 12µs (Typ) 9µs 9µs
Operating Temperature -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 105°C -40°C ~ 105°C
Package Tape & Reel (TR) Tube Tape & Reel (TR) Tape & Reel (TR)
