Manufacturer Part Number

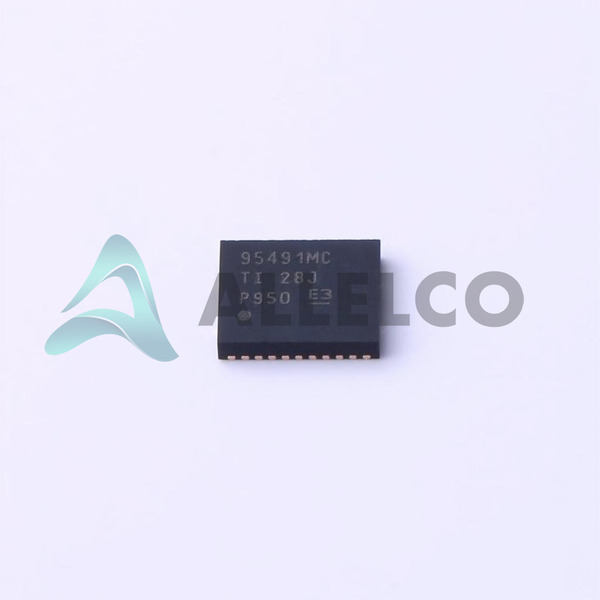

CSD95491Q5MC
Manufacturer
Texas Instruments
Introduction
Power Management IC for synchronous buck converters
Product Features and Performance
Highly integrated H Bridge driver
Supports half bridge configurations
Comes in compact 12-PowerTFDFN package
Integrated Bootstrap Circuit for high-side drive
Shoot-Through Protection for device safety
Product Advantages
Optimized for high-performance applications
High output current capacity of 60A
Peak output current of 90A for transient conditions
Designed for low voltage operations ranging from 4.5V to 16V
Capable of driving inductive and capacitive loads
Key Technical Parameters
Output Configuration: Half Bridge
Applications: Synchronous Buck Converters
Interface: PWM
Load Type: Inductive, Capacitive
Technology: Power MOSFET
Voltage - Supply: 4.5V ~ 5.5V
Voltage - Load: 4.5V ~ 16V
Operating Temperature: -40°C ~ 125°C (TJ)
Current - Output / Channel: 60A
Current - Peak Output: 90A
Quality and Safety Features
Integrated Fault Protection
High thermal tolerance from -40°C to 125°C
Compatibility
Compatible with standard surface mount technology
Suitable for use with PWM signal interfaces
Application Areas
Power supply units
Data centers
Computing
Telecommunications equipment
Industrial systems
Product Lifecycle
Active status
Not specified as nearing discontinuation
Availability of replacements or upgrades not mentioned
Several Key Reasons to Choose This Product
Reliable manufacturer known for quality semiconductor products
High current handling for demanding applications
Protection features ensure long-term reliability
Supports wide operating temperature range
NexFET™ technology for efficient power conversion
Minimalistic, surface mountable design for compact PCB layouts
