Manufacturer Part Number

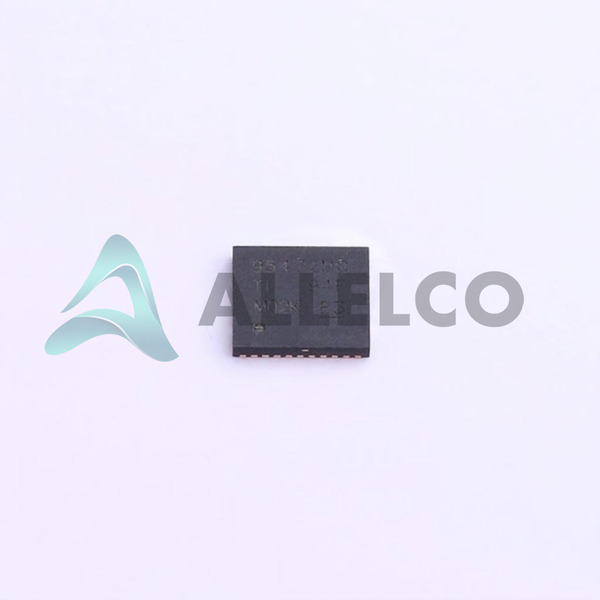

CSD95472Q5MC
Manufacturer
Texas Instruments
Introduction
The CSD95472Q5MC is a high-performance full half-bridge driver from Texas Instruments, optimized for power management applications, specifically designed to enhance the efficiency and performance of synchronous buck converters.
Product Features and Performance
Integrated with advanced NexFET™ technology
Features include Bootstrap Circuit, Diode Emulation, and Status Flag
Fault protection mechanisms for Current Limiting and Over Temperature
Product Advantages
High current capability with 60A output per channel and 90A peak output
Wide operating temperature range from -55°C to 150°C
Compact 12-PowerTFDFN package for space-sensitive applications
Key Technical Parameters
Output / Channel Current: 60A
Peak Output Current: 90A
Supply Voltage: 4.5V ~ 5.5V
Load Voltage: 4.5V ~ 16V
Operating Temperature: -55°C ~ 150°C
Quality and Safety Features
Robust current limiting and over-temperature fault protection
Enhanced performance stability in extreme conditions
Compatibility
Suitable for use with synchronous buck converters
Interface compatibility with PWM signals
Application Areas
Power supply modules
Computing systems
Telecommunications equipment
Industrial systems
Product Lifecycle
Currently active with no near-term plans for discontinuation
Replacement and upgrade options are available within the NexFET™ series
Several Key Reasons to Choose This Product
High efficiency and reliability through advanced NexFET™ technology
Versatile power range suitable for various electronic applications
Extended operational durability with robust safety features
Seamless integration with standard PWM interface systems
