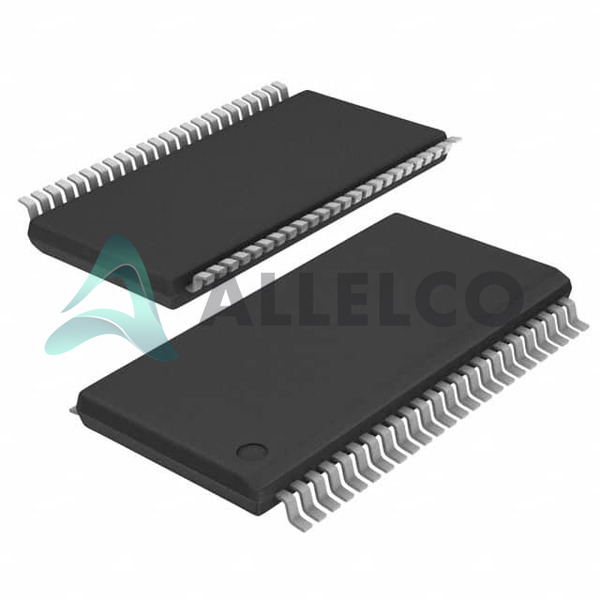

CLVTH16244AIDGVREP - Texas Instruments

Manufacturer Part Number

CLVTH16244AIDGVREP

Manufacturer

Texas Instruments

Introduction

High-speed 16-bit buffer designed for low-voltage operation and level shifting

Product Features and Performance

16-bit non-inverting buffer logic

Four elements with four bits each

Three-state outputs for bus interfacing

Supports 2.7V to 3.6V power supply

I/O performance provides current of 32mA output high and 64mA output low

Compatible with bus hold which retains the inputs' last state whenever the input goes to high impedance

Product Advantages

Capable of driving heavily loaded outputs for bus-oriented applications

High impedance state during power-up and power-down to prevent driver conflict

Key Technical Parameters

Buffers/drivers/receivers with 3-State outputs

7V to 3.6V voltage supply range

-40°C to 85°C operating temperature range

32mA current output high

64mA current output low

Quality and Safety Features

Meets or exceeds JEDEC standard specifications

Suitable for operation over industrial temperature ranges

Constructed from materials rated for high-temperature operation

Compatibility

Compatible with 5V tolerant systems due to flexible voltage range

Application Areas

Suitable for use in telecom infrastructure

Ideal for computer peripheral devices

Applicable in networking equipment and servers

Product Lifecycle

Active product status indicating continued production and availability

No indication of nearing discontinuation at present

Substitute or upgraded parts should be available if necessary

Several Key Reasons to Choose This Product

Guaranteed output skew for synchronous operation

Wide voltage operation range for flexibility across different systems

Enhanced system reliability through built-in bus hold feature

Capable of driving heavy loads, suitable for bus-oriented environments

Reduced power consumption in low-voltage applications

Packaged in easy-to-use surface mount form for simpler manufacturing processes
