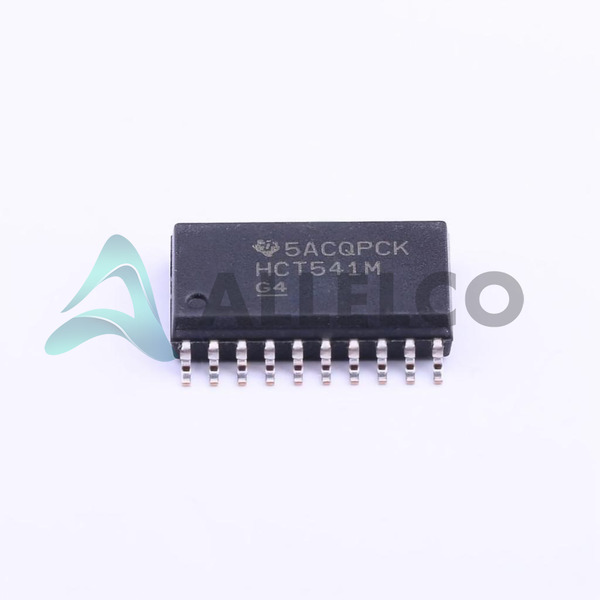

CD74HCT541M96 - Texas Instruments

Manufacturer Part Number

CD74HCT541M96

Manufacturer

Texas Instruments

Introduction

High-Speed CMOS Logic Octal Buffers and Line Drivers with 3-State Outputs

Product Features and Performance

Non-Inverting Buffers

Eight Buffers with 3-State Outputs

Balanced Propagation Delays

High Current Output Capability

Low Power Consumption

Industrial Temperature Range Supported

Product Advantages

High Noise Immunity

Optimized for Signaling at High Speeds

Compatible with TTL Circuits

Reduces Power Consumption for Battery-Powered Devices

Key Technical Parameters

Logic Type: Buffer, Non-Inverting

Number of Elements: 1

Number of Bits per Element: 8

Output Type: 3-State

Current - Output High, Low: 6mA, 6mA

Voltage - Supply: 4.5V ~ 5.5V

Operating Temperature Range: -55°C ~ 125°C

Quality and Safety Features

Industry Standard Conformance

Over Temperature Protection

Robust ESD Performance

Compatibility

Direct Interfacing with TTL Levels

Bidirectional Signal Conversion

Compatible with 20-SOIC Mounting and Soldering Techniques

Application Areas

Communication Systems

Data Management

Industrial Control Systems

High-Frequency Signal Driving

Product Lifecycle

Currently Active

Availability of Replacements: Can be regularly ordered

Not Nearing Discontinuation

Several Key Reasons to Choose This Product

Optimized for High Signal Integrity

Supports Wide Operating Temperature Range

Ideal for High-Performance Industrial Uses

Efficiency in Power Consumption for Extended Battery Life

Readily Integrates with Existing Digital Systems

Robust Against Electrical Disturbances

Proven Reliability from Texas Instruments
