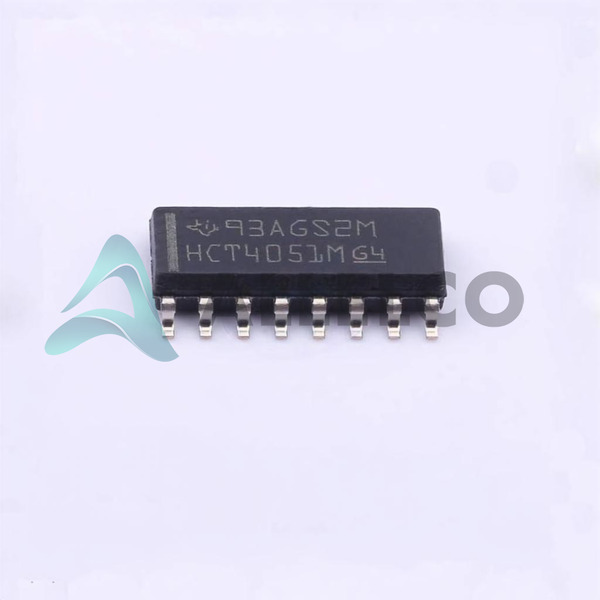

CD74HCT4051M96 - Texas Instruments

Manufacturer Part Number

CD74HCT4051M96

Manufacturer

Texas Instruments

Introduction

High-Speed CMOS Logic 8-Channel Analog Multiplexer/Demultiplexer

Product Features and Performance

Single 8-Channel Multiplexer/Demultiplexer

Wide Analog Input Voltage Range

Low ON-state Resistance

Fast Switching Times

Low Crosstalk between Switches

Low Off-Channel Leakage Current

Product Advantages

Compatible with 5V Logic Levels

High Bandwidth Capabilities up to 180MHz

Low Charge Injection

Reduced Signal Distortion

Industry-Standard SOIC Package

Operational in a wide temperature range

Key Technical Parameters

Multiplexer/Demultiplexer Circuit: 8:1

Number of Circuits: 1

On-State Resistance (Max): 130Ohm

Channel-to-Channel Matching (ΔRon): 5Ohm

Voltage Supply Range: Single (V+) 4.5V ~ 5.5V, Dual (V±) ±1V ~ 5V

3db Bandwidth: 180MHz

Channel Capacitance: CS(off) 5pF, CD(off) 25pF

Current - Leakage (IS(off)) (Max): 400nA

Operating Temperature: -55°C ~ 125°C

Quality and Safety Features

Over-temperature and Over-voltage Protection

Compliance with RoHS Requirements

ESD Protection

Highly Reliable Performance

Compatibility

Logic Interface Compatible with 5V Systems

Adaptable with Various Signal Levels

Application Areas

Signal Routing in Communication Systems

Data Acquisition Systems

Test Equipment and Instrumentation

Audio and Video Switching

Product Lifecycle

Active Product Status

Not nearing discontinuation

Replacements or upgrades available
