CD74HCT175M96 - Texas Instruments

Manufacturer Part Number

CD74HCT175M96

Manufacturer

Texas Instruments

Introduction

High-speed Si-gate CMOS device designed to manage data through D-type flip-flop functionality with master reset

Product Features and Performance

74HCT Series logic family

Complementary output type for balanced signal processing

Single-element configuration with 4-bit storage capacity

Capable of handling clock frequencies up to 25 MHz

Positive edge-triggered flip-flop design enhancing signal integrity

Low propagation delay, 33ns at optimal conditions

Low output current of 4mA for both high and low states, ensuring energy efficiency

Power supply voltage range suitable for typical digital circuits: 4.5V to 5.5V

Ultra-low quiescent current of 8 µA, minimizing standby power consumption

Input capacitance at a minimal level of 10 pF to reduce load on driving circuits

Broad operating temperature range suitable for harsh environments: -55°C to 125°C

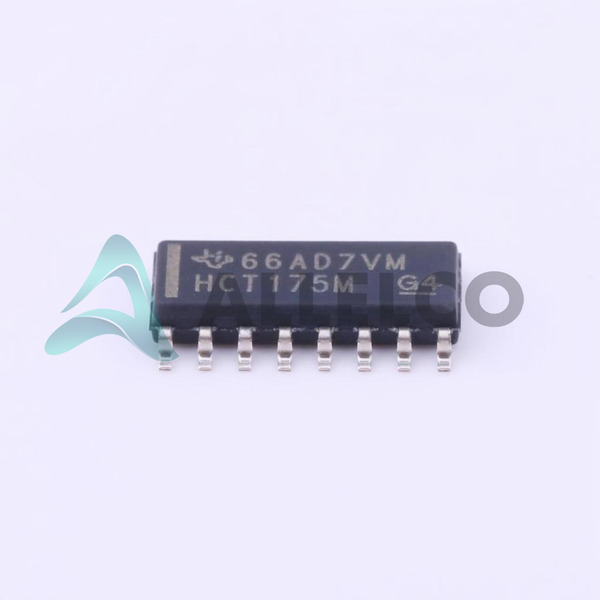

Surface-mount 16-SOIC package for compact PCB layout

Product Advantages

Designed for high-speed operation without compromising power efficiency

Robust temperature handling capabilities for versatile use

Reliable data storage and signal processing through master reset functionality

Suitable for automated surface mount assembly with its SOIC package

Industry-standard package and pinout for easy design replacement and migration

Key Technical Parameters

Clock Frequency: 25 MHz

Max Propagation Delay: 33ns @ 4.5V, 50pF

Output Current: 4mA High & Low

Supply Voltage Range: 4.5V to 5.5V

Quiescent Current: 8 µA

Operating Temperature Range: -55°C to 125°C

Quality and Safety Features

Complies with stringent Texas Instruments quality standards

Reliable performance across a wide temperature range ensuring device safety

Compatibility

Compatible with standard logic-level voltages for ease of system integration

Conforms to JEDEC standard no. 7A ensuring interoperability

Application Areas

Digital data processing

Communication devices

Control systems

Signal routing

Register design in computing hardware

Industrial electronics

Product Lifecycle

Product Status: Active

Not indicated to be nearing discontinuation

Potential future replacements or upgrades adhere to new technological advancements

Several Key Reasons to Choose This Product

High-speed operation at 25 MHz clock frequency for demanding applications

Positive edge-triggering for precise timing operations

Low power consumption, with high performance maintained at low output currents

Wide operating temperature range making it highly reliable in various environments

Easily replaceable and compatible due to industry-standard specifications and packaging

Manufactured by Texas Instruments, a trusted leader in semiconductor solutions
