Manufacturer Part Number

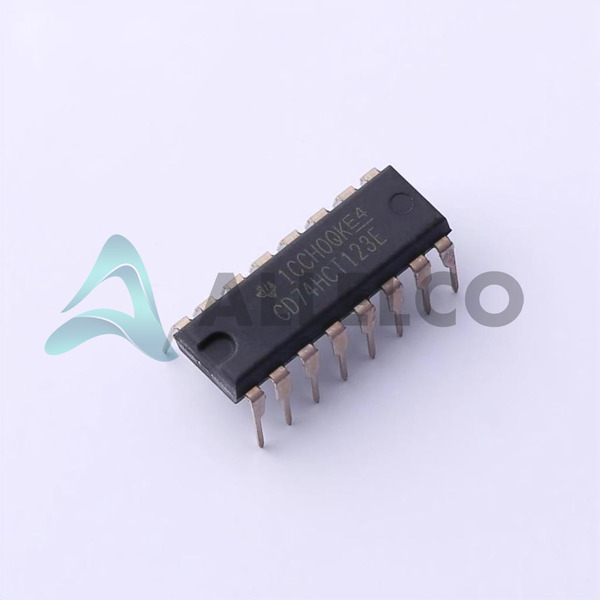

CD74HCT123E
Manufacturer
Texas Instruments
Introduction
High-speed Si-gate CMOS device, Monostable Multivibrator
Product Features and Performance
Dual multivibrator
Standard 74HCT logic
Fast propagation delay of 25 ns
Product Advantages
Low power consumption
Balanced propagation delays
Key Technical Parameters
Logic Type: Monostable
Independent Circuits: 2
Propagation Delay: 25 ns
Current - Output High, Low: 4mA, 4mA
Voltage - Supply: 4.5 V to 5.5 V
Operating Temperature: -55°C to 125°C
Mounting Type: Through Hole
Package / Case: 16-DIP
Supplier Device Package: 16-PDIP
Quality and Safety Features
Extended temperature range
Reliable performance
Compatibility
Compatible with TTL logic levels
Application Areas
Timers
Industrial control systems
Pulse generation
Product Lifecycle
Active status
Not near discontinuation
Replacements and upgrades available
Several Key Reasons to Choose This Product
Proven Texas Instruments quality and reliability
High noise immunity
Integrated dual monostable circuits
Versatile supply voltage range
Suitable for harsh temperature environments
Through-hole package for easy integration in legacy systems
