Manufacturer Part Number

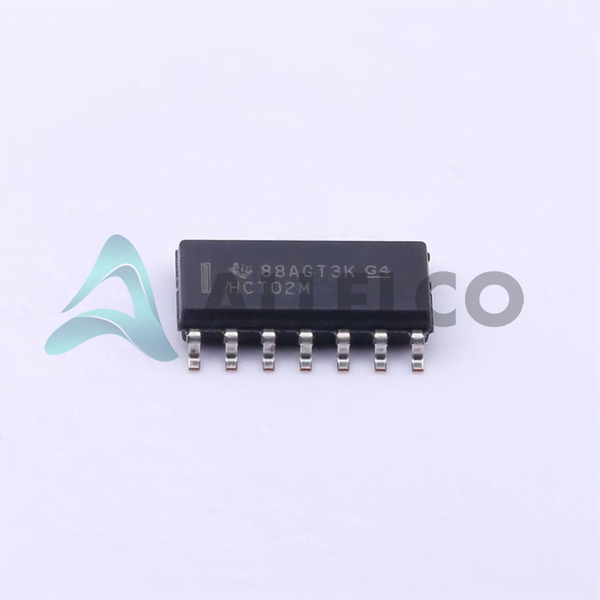

CD74HCT02M96
Manufacturer
Texas Instruments
Introduction
High-speed CMOS logic quad 2-input NOR gate integrated circuit
Product Features and Performance
Integrated quad 2-input NOR logic gates
High-speed CMOS technology
Low power consumption
Product Advantages
Robust temperature range for operation in extreme conditions
Surface mount technology for compact board designs
Suitable for high-speed interface applications
Key Technical Parameters
Logic Type: NOR Gate
Number of Circuits: 4
Number of Inputs: 2
Voltage Supply: 4.5V to 5.5V
Current Quiescent (Max): 2 µA
Current Output High, Low: 4mA, 4mA
Input Logic Level Low: 0.8V
Input Logic Level High: 2V
Max Propagation Delay @ V, Max CL: 21ns @ 4.5V, 50pF
Quality and Safety Features
Over-temperature and over-voltage protection for reliable operation
Compatibility
Compatible with TTL logic levels
Mounting Type: Surface Mount
Supplier Device Package: 14-SOIC
Application Areas
Telecom systems
Embedded computing
Consumer electronics
Logic interface circuits
Product Lifecycle
Product Status: Active
Not nearing discontinuation, support and parts expected to be available
Several Key Reasons to Choose This Product
Manufactured by Texas Instruments, a trusted industry leader
Extended operating temperature range ideal for industrial applications
High-speed performance suitable for modern digital systems
Low power consumption to enhance energy efficiency in designs
Availability in Tape & Reel packaging ideal for automated assembly processes
Extensive application support and longevity in the market
