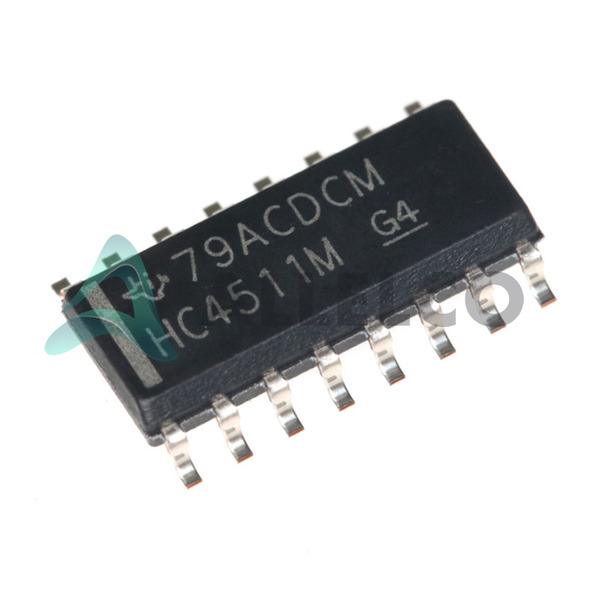

CD74HC4511M96 - Texas Instruments

Manufacturer Part Number

CD74HC4511M96

Manufacturer

Texas Instruments

Introduction

The CD74HC4511M96 is a high-performance CMOS-based LED display driver designed for power management applications.

Product Features and Performance

BCD-to-7-segment latch/decoder/driver for LED display

Optimized for low power consumption

Wide supply voltage range (2V to 6V)

Supports BCD input format

Drives one 7-segment LED display

Surface Mount Technology for compact integration

Product Advantages

Low current supply requirement (8 μA)

High temperature resilience (-55°C to 125°C)

Durable and reliable performance in diverse environments

Key Technical Parameters

Current Supply: 8 µA

Voltage Supply: 2V to 6V

Operating Temperature: -55°C to 125°C

Interface: BCD

Configuration: 7 Segment

Display Type: LED

Quality and Safety Features

Constructed following strict industry standards

Robust against temperature fluctuations and power variance

Compatibility

Compatible with various power and display setups requiring 2V to 6V supply voltage

Application Areas

Automotive Displays

Consumer Electronics

Industrial Instrument Panels

Product Lifecycle

Status: Active

Not currently nearing discontinuation

Replacement and upgrade options available as newer technologies evolve

Several Key Reasons to Choose This Product

Ultra-low power consumption enhances battery life

High tolerance to temperature variations ensures reliability in harsh conditions

Surface mounting technology enables integration into compact hardware designs

Precision performance with BCD interface supports sophisticated display functionalities
