HomeProductsIntegrated Circuits (ICs)Interface - Analog Switches, Multiplexers, DemultiplexersCD74HC4066M96

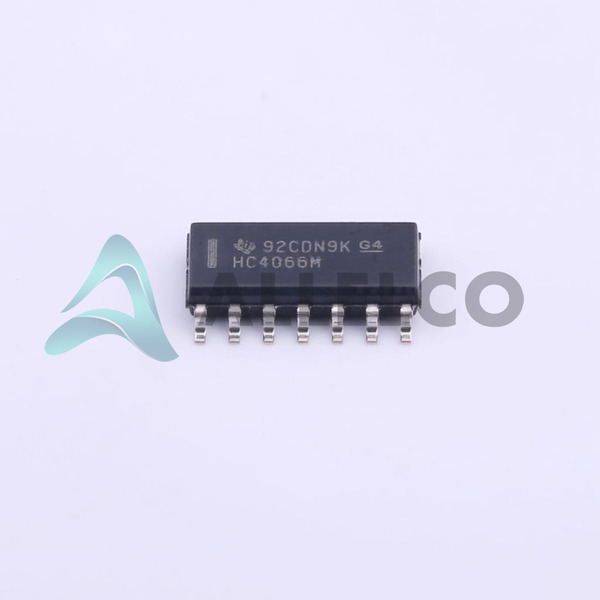

CD74HC4066M96 Image
CD74HC4066M96 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

CD74HC4066M96 - Texas Instruments

Manufacturer Part Number
CD74HC4066M96
Manufacturer
Texas Instruments
Allelco Part Number
32D-CD74HC4066M96
ECAD Model
Parts Description
IC SWITCH SPST-NOX4 70OHM 14SOIC
Detailed Description
Package
14-SOIC (0.154", 3.90mm Width)
Data sheet
CD54,74HC(T)4066.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 150650

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

CD74HC4066M96 Tech Specifications
Texas Instruments - CD74HC4066M96 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CD74HC4066M96

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Single (V+) 2V ~ 10V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) -
Switch Circuit SPST - NO
Supplier Device Package 14-SOIC
Series -
Package / Case 14-SOIC (0.154", 3.90mm Width)
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 125°C (TA)
On-State Resistance (Max) 70Ohm
Product Attribute Attribute Value
Number of Circuits 4
Multiplexer/Demultiplexer Circuit 1:1
Mounting Type Surface Mount
Current - Leakage (IS(off)) (Max) 100nA
Crosstalk -72dB @ 1MHz
Charge Injection -
Channel-to-Channel Matching (ΔRon) 500mOhm
Channel Capacitance (CS(off), CD(off)) 5pF
Base Product Number 74HC4066
-3db Bandwidth 200MHz

Parts Introduction

Manufacturer Part Number

CD74HC4066M96

Manufacturer

Texas Instruments

Introduction

CD74HC4066M96 is an analog switch from Texas Instruments designed for multiplexing and demultiplexing applications

Product Features and Performance

Four independently selectable switches

SPST - Normally Open switch architecture

Low on-state resistance

High-bandwidth data switching capabilities

Minimal mismatch between channels

Low-voltage logic level compatibility

Product Advantages

Compatible with a wide range of supply voltages

Reputable manufacturer known for quality and reliability

Precise manufacturing ensures minimal crosstalk

Ideal for high-speed analog signal switching

Robust temperature range for various environmental conditions

Key Technical Parameters

On-State Resistance Max 70Ohm

Channel-to-Channel Matching ΔRon 500mOhm

Supply Voltage 2V to 10V

Bandwidth 200MHz

Off Channel Capacitance 5pF

Leakage Current Max 100nA

Crosstalk -72dB at 1MHz

Operating Temperature -55°C to 125°C

Quality and Safety Features

Extended operating temperature range

Low leakage current for safer operation

High immunity to crosstalk ensures signal integrity

Compatibility

Designed for surface mount technology

Compatible with wide voltage supply range

Industry standard package 14-SOIC

Application Areas

Telecommunications

Data acquisition systems

Test equipment

Audio and video switching

Product Lifecycle

Active status indicates current production

Not nearing discontinuation

Availability of replacements or upgrades as per Texas Instruments' portfolio

Several Key Reasons to Choose This Product

Optimized for signal integrity with minimal leakage and crosstalk

Versatile in both digital and analog applications

Ensures reliable performance over broad temperature ranges

Ease of integration in various circuit designs

Produced by Texas Instruments, a leader in semiconductor technology

High-frequency operation capability with broad bandwidth

Energy-efficient performance with low-voltage requirements

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CD74HC4066M96

Product Attribute CD74HC4066M96 CD74HC4066PWR CD74HC4067MG4 CD74HC4067M96
Part Number CD74HC4066M96 CD74HC4066PWR CD74HC4067MG4 CD74HC4067M96
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Mounting Type Surface Mount Surface Mount - Surface Mount
Package / Case 14-SOIC (0.154", 3.90mm Width) 14-TSSOP (0.173', 4.40mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width)
Operating Temperature -55°C ~ 125°C (TA) -55°C ~ 125°C (TA) -55°C ~ 125°C (TA) -55°C ~ 125°C (TA)
-3db Bandwidth 200MHz 200MHz 89MHz 89MHz
Voltage - Supply, Dual (V±) - - - -
Multiplexer/Demultiplexer Circuit 1:1 1:1 16:1 16:1
Voltage - Supply, Single (V+) 2V ~ 10V 2V ~ 10V 2 V ~ 6 V 2V ~ 6V
Switch Time (Ton, Toff) (Max) - - 51ns, 49ns 51ns, 49ns
Base Product Number 74HC4066 74HC4066 - 74HC4067
Number of Circuits 4 4 1 1
Series - - - -
Current - Leakage (IS(off)) (Max) 100nA 100nA 800nA 800nA
Crosstalk -72dB @ 1MHz -72dB @ 1MHz - -
Charge Injection - - - -
Channel-to-Channel Matching (ΔRon) 500mOhm 500mOhm - 8.5Ohm
Package Tape & Reel (TR) Tape & Reel (TR) - Tape & Reel (TR)
Switch Circuit SPST - NO SPST - NO - -
On-State Resistance (Max) 70Ohm 70Ohm 160 Ohm 160Ohm
Channel Capacitance (CS(off), CD(off)) 5pF 5pF 5pF, 50pF 5pF, 50pF
Supplier Device Package 14-SOIC 14-TSSOP 24-SOIC 24-SOIC

CD74HC4066M96 Datasheet PDF

Download CD74HC4066M96 pdf datasheets and Texas Instruments documentation for CD74HC4066M96 - Texas Instruments.

PCN Packaging
Reel 10/Jul/2018.pdf Reels 19/Apr/2018.pdf
HTML Datasheet
CD54,74HC(T)4066.pdf
