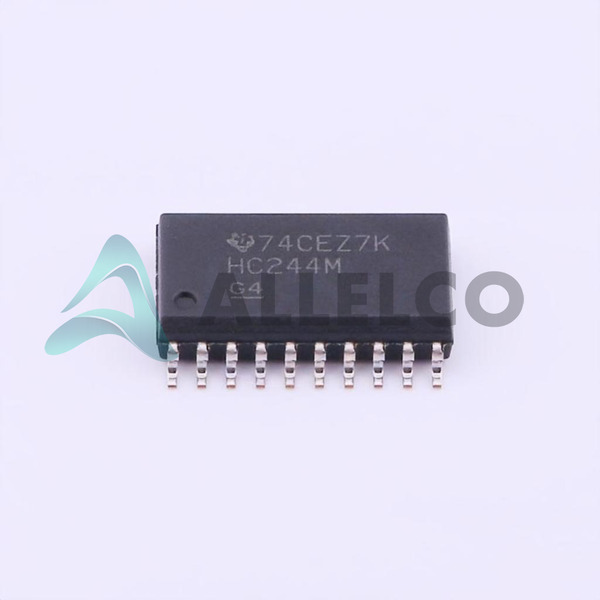

CD74HC244M96 - Texas Instruments

Manufacturer Part Number

CD74HC244M96

Manufacturer

Texas Instruments

Introduction

High-speed Si-gate CMOS device with octal non-inverting buffer/line driver, three-state outputs

Product Features and Performance

Dual-element with four bits per element

Non-inverting buffers

Output type: 3-State, enabling bidirectional operation

High current output capability: 7.8mA

Wide voltage supply range: 2V to 6V

Industry-standard SOIC-20 packaging

High noise immunity

Balanced propagation delays

Product Advantages

Can drive up to 15 LSTTL loads

Three-state outputs interface directly with system bus

Significant power reduction compared to LSTTL logic ICs

Suitable for buffering memory address registers, data buses

Key Technical Parameters

Logic Type: Buffer, Non-Inverting

Elements: 2

Bits per Element: 4

Current Output High, Low: 7.8mA

Voltage Supply: 2V ~ 6V

Operating Temperature: -55°C ~ 125°C

Quality and Safety Features

ESD protection exceeds JESD 22

Latch-up performance exceeds 100mA per JESG 78, Class II

Compatibility

Compatible with M74HC244 devices

Functional compatibility with the 74LS244

Application Areas

Bus-oriented systems

Memory drivers

Data transmission systems

Control systems

Product Lifecycle

Active product status

Not approaching discontinuation

Availability of replacement or upgrades not mentioned

Several Key Reasons to Choose This Product

Proven reliability from Texas Instruments

Wide operating temperature range suited to harsh environments

Supports multiple logic-level standards with wide supply voltage range

Optimized power consumption over older technology

Broad application flexibility due to three-state outputs

Available in tape and reel for automated assembly processes
