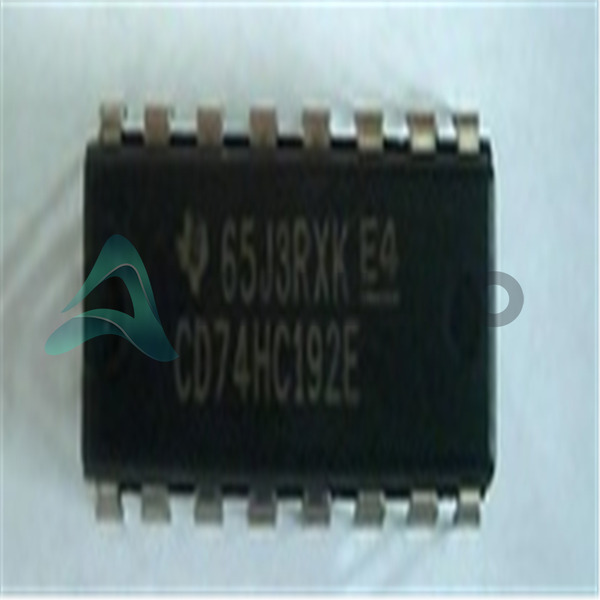

CD74HC192E - Texas Instruments

Manufacturer Part Number

CD74HC192E

Manufacturer

Texas Instruments

Introduction

Logic Counter, Decade Up/Down

Product Features and Performance

4-Bit Binary Counter

Synchronous Counting

Up/Down Counting Capability

Asynchronous Reset Option

Positive Edge Triggering

High-Speed Operation

Product Advantages

Compatible with 74HC Logic Family

High Noise Immunity

Low Power Consumption

Key Technical Parameters

Decade Counter Logic Type

Two Counting Directions: Up and Down

Single Element with 4 Bits

Count Rate of 24 MHz

Supply Voltage Range from 2 V to 6 V

Extended Operating Temperature Range from -55°C to 125°C

Quality and Safety Features

Compliance with RoHS Standards

Suitable for Industrial and Commercial Environments

Compatibility

Logic Compatibility with entire 74HC Series

Application Areas

Consumer Electronics

Embedded Systems

Automation

Instrumentation

Process Control

Product Lifecycle

Active Status

No Indication of Near Discontinuation

Several Key Reasons to Choose This Product

Precision High-Speed Counting

Versatile Use in Bidirectional Counting Applications

Robust Temperature Performance for Harsh Environments

Direct Replacement for Other Standard 74HC Series Counters

Broad Compatibility with Digital Systems

Reliable and Long-Term Supplier Support from Texas Instruments
