CD74HC123E - Texas Instruments

Manufacturer Part Number

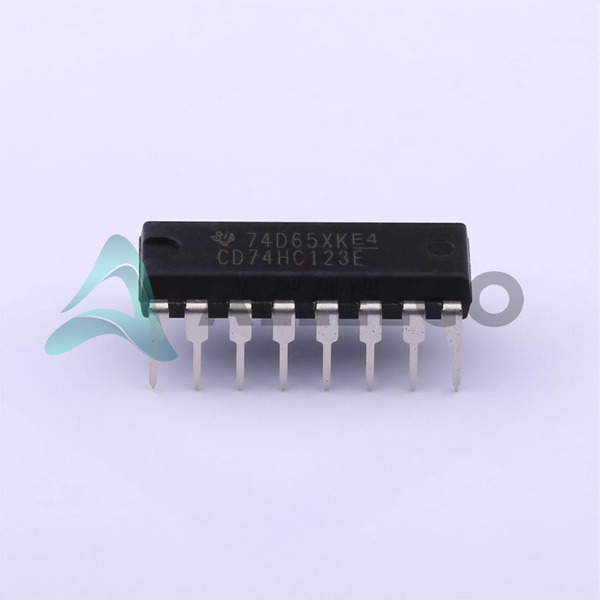

CD74HC123E

Manufacturer

Texas Instruments

Introduction

High-speed CMOS logic dual retriggerable monostable multivibrator

Product Features and Performance

Robust high-speed logic

Dual retriggerable monostable multivibrator

Can be used as a pulse generator

High noise immunity

Low power consumption

Product Advantages

Extended operating temperature range

Provides consistent performance over a wide voltage range

Key Technical Parameters

Logic Type: Monostable

Independent Circuits: 2

Propagation Delay: 25 ns

Current - Output High, Low: 5.2mA, 5.2mA

Voltage - Supply: 2 V ~ 6 V

Operating Temperature: -55°C ~ 125°C

Mounting Type: Through Hole

Package / Case: 16-DIP (0.300", 7.62mm)

Quality and Safety Features

Operates reliably in extreme temperatures

Compliance with industry-standard safety protocols

Compatibility

Suitable for use in TTL, CMOS, and other logic family circuits

Application Areas

Timing circuits

Pulse generation

Waveform shaping

Automotive systems

Industrial controls

Communication equipment

Product Lifecycle

Obsolete

Replacements or upgrades may be available

Several Key Reasons to Choose This Product

Precision control of output pulse widths

Stable operation across wide temperature and voltage ranges

High-current sourcing and sinking capabilities

Ease of integration in multiple electronic applications

Reputation of Texas Instruments for reliable and durable components
