CD74AC244M96 - Texas Instruments

Manufacturer Part Number

CD74AC244M96

Manufacturer

Texas Instruments

Introduction

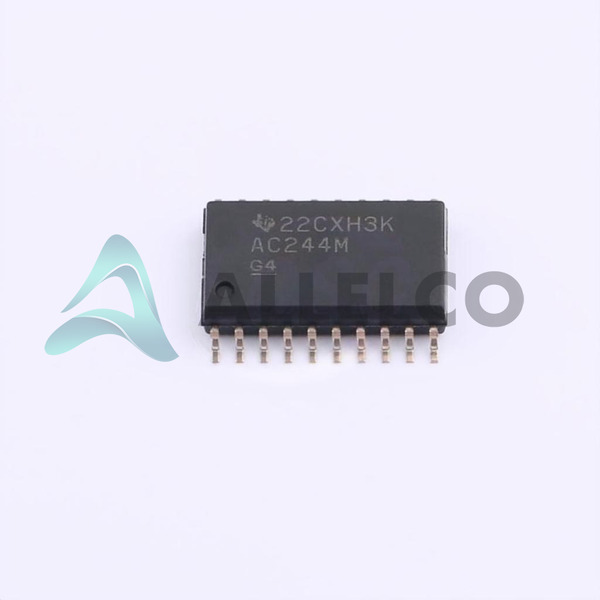

The CD74AC244M96 is a high-speed CMOS logic buffer from Texas Instruments. It features non-inverting buffers with tri-state outputs designed to interface with high-speed CMOS systems.

Product Features and Performance

Non-inverting elements

Dual 4-bit configuration

Three-state outputs facilitate bus-oriented applications

High output drive capabilities (24mA)

Wide operating voltage range of 1.5V to 5.5V

Surface mount package ensures compact circuit design

Product Advantages

Efficient for increasing drive strength

Enhances signal integrity in high-speed environments

Compatible with a wide range of supply voltages for versatile applications

Suitable for creating bus-oriented systems

Key Technical Parameters

Number of Elements: 2

Number of Bits per Element: 4

Current Output High, Low: 24mA, 24mA

Voltage Supply: 1.5V to 5.5V

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Manufactured using robust CMOS technology

Ensures reliable operation within specified temperature ranges

Compatibility

Compatible with other CMOS and TTL logic products

Can be used in mixed technology systems

Application Areas

Communication systems

Data processing systems

Driving bus lines in computing systems

Product Lifecycle

Currently active product status

Long-term availability with no planned discontinuation

Continuous support and upgrades likely available

Several Key Reasons to Choose This Product

High reliability and performance consistency

Broad compatibility with multiple voltage levels and logic families

Strong output drive significantly improves signal responsiveness

Suitable for harsh working environments due to wide temperature range operation capability

Readily available in tape and reel packaging for automated assembly processes
