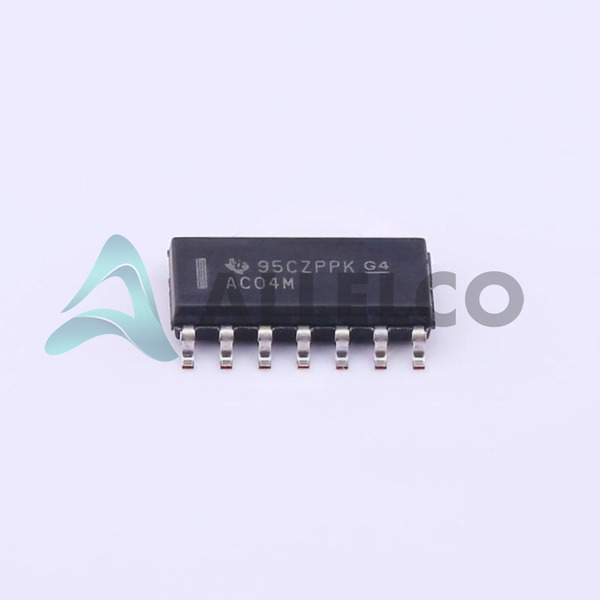

CD74AC04M96 - Texas Instruments

Manufacturer Part Number

CD74AC04M96

Manufacturer

Texas Instruments

Introduction

The CD74AC04M96 is a high-speed CMOS inverter integrated circuit from Texas Instruments. It belongs to the 74AC series, known for its advanced high-speed CMOS technology.

Product Features and Performance

Comprises six inverters

Single input per circuit

High-speed operation

Low power consumption with a maximum quiescent current of 4 µA

High output current capability of 24mA for both high and low outputs

Wide supply voltage range from 1.5V to 5.5V

Fast propagation delay: 6.5ns at 5V supply voltage and 50pF load

Input logic level compatibility: Low level from 0.3V to 1.65V, High level from 1.2V to 3.85V

Product Advantages

Versatility due to its wide operating voltage range

Suitable for high-speed applications

Minimal power consumption enhances battery life in portable devices

High output drive capability allows driving multiple loads

Key Technical Parameters

Logic Type: Inverter

Number of Circuits: 6

Voltage Supply: 1.5V ~ 5.5V

Current Quiescent (Max): 4 µA

Current Output High, Low: 24mA, 24mA

Max Propagation Delay @ V, Max CL: 6.5ns @ 5V, 50pF

Operating Temperature: -55°C ~ 125°C

Mounting Type: Surface Mount

Package / Case: 14-SOIC

Quality and Safety Features

Manufactured by Texas Instruments, a leader in semiconductor solutions, ensuring high quality and reliability

Operates over a wide temperature range, guaranteeing performance in extreme conditions

Compatibility

Compatible with other 74 series logic circuits

Suitable for use in digital logic circuits and as interface buffers

Application Areas

Telecommunications

Computing devices

Consumer electronics

Industrial control systems

Product Lifecycle

The product status is active, indicating availability and continued production.

It does not currently indicate nearing discontinuation, ensuring a reliable supply for future designs.

Several Key Reasons to Choose This Product

High reliability and quality offered by Texas Instruments

Low power consumption suitable for battery-powered applications

High-speed performance for demanding logic circuits

Wide operational temperature range suitable for industrial applications

Flexibility in use due to its wide voltage range and high output drive capacity
