HomeProductsIntegrated Circuits (ICs)Logic - Gates and InvertersCD4081BF3A
Texas Instruments

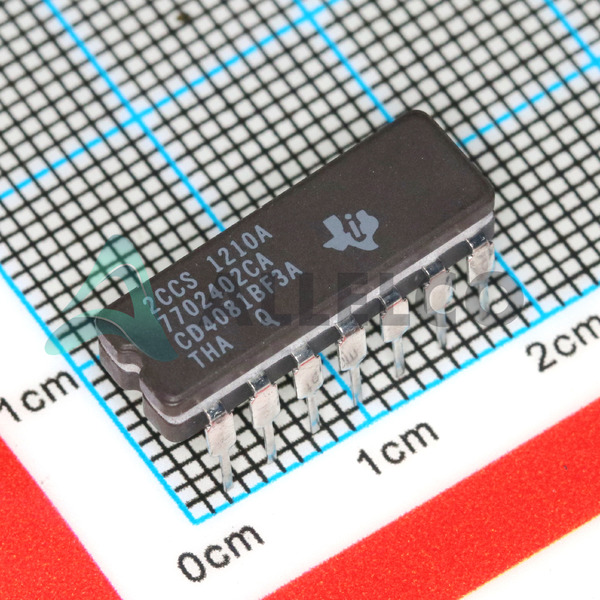

Image may be representation.
See specifications for product details.
EXPRESS OPTION
Payment method

CD4081BF3A - Texas Instruments

Manufacturer Part Number
CD4081BF3A
Manufacturer
Texas Instruments
Allelco Part Number
32D-CD4081BF3A
ECAD Model
Parts Description
MILITARY 4-CH, 2-INPUT, 3-V TO 1
Package
14-CDIP (0.300", 7.62mm)
Data sheet
CD4073B, CD4081B, CD4082B.pdf
RoHs Status
ROHS3 Compliant
Our certification
In stock: 16590

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

CD4081BF3A Tech Specifications
Texas Instruments - CD4081BF3A technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CD4081BF3A

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 3V ~ 18V
Supplier Device Package 14-CDIP
Series -
Package / Case 14-CDIP (0.300", 7.62mm)
Package Tube
Operating Temperature -55°C ~ 125°C
Number of Inputs 2
Number of Circuits 4
Product Attribute Attribute Value
Mounting Type Through Hole
Max Propagation Delay @ V, Max CL 90ns @ 15V, 50pF
Logic Type AND Gate
Input Logic Level - Low 1.5V ~ 4V
Input Logic Level - High 3.5V ~ 11V
Features -
Current - Quiescent (Max) 5 µA
Current - Output High, Low 6.8mA, 6.8mA

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

CD4081BF3A

Manufacturer

Texas Instruments

Introduction

The CD4081BF3A is a quad 2-input AND gate integrated circuit from Texas Instruments. It is part of the 4000-series CMOS logic family.

Product Features and Performance

Quad 2-input AND gate

Wide supply voltage range: 3V to 18V

Low power consumption

Fast propagation delay: 90ns max at 15V, 50pF load

Robust CMOS technology

Operates across a wide temperature range: -55°C to 125°C

Product Advantages

Versatile and widely applicable logic function

Excellent power efficiency

High-speed operation

Reliable performance in harsh environments

Key Technical Parameters

Number of inputs: 2 per gate

Number of circuits: 4

Input logic levels: 1.5V to 4V (low), 3.5V to 11V (high)

Quiescent current: 5μA max

Output current: 6.8mA (high and low)

Logic type: AND gate

Quality and Safety Features

RoHS3 compliant

Suitable for through-hole mounting

Reliable CMOS construction

Compatibility

The CD4081BF3A is compatible with other 4000-series CMOS logic devices and can be used in a wide range of digital circuits and systems.

Application Areas

Digital logic and control circuits

Arithmetic and counting circuits

Timing and sequencing applications

Interface and signal conditioning circuits

Product Lifecycle

The CD4081BF3A is an active and widely available product from Texas Instruments. There are no plans for discontinuation, and replacement or upgrade options are readily available.

Key Reasons to Choose This Product

Versatile and widely applicable logic function

Excellent power efficiency and performance

Reliable and robust CMOS construction

Wide operating temperature range

RoHS compliance and through-hole mounting options

Compatibility with other 4000-series CMOS logic devices

Readily available and actively supported by the manufacturer

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CD4081BF3A

Product Attribute CD4081BF3A CD4081BCN CD4081BNSR CD4081BE
Part Number CD4081BF3A CD4081BCN CD4081BNSR CD4081BE
Manufacturer Texas Instruments onsemi Texas Instruments Texas Instruments
Supplier Device Package 14-CDIP 14-MDIP 14-SO 14-PDIP
Number of Circuits 4 4 4 4
Features - - - -
Series - 4000B 4000B 4000B
Input Logic Level - Low 1.5V ~ 4V 1.5V ~ 4V 1.5V ~ 4V 1.5V ~ 4V
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Max Propagation Delay @ V, Max CL 90ns @ 15V, 50pF 70ns @ 15V, 50pF 90ns @ 15V, 50pF 90ns @ 15V, 50pF
Package / Case 14-CDIP (0.300", 7.62mm) 14-DIP (0.300", 7.62mm) 14-SOIC (0.209", 5.30mm Width) 14-DIP (0.300", 7.62mm)
Current - Output High, Low 6.8mA, 6.8mA 3.4mA, 3.4mA 3.4mA, 3.4mA 3.4mA, 3.4mA
Input Logic Level - High 3.5V ~ 11V 3.5V ~ 11V 3.5V ~ 11V 3.5V ~ 11V
Logic Type AND Gate AND Gate AND Gate AND Gate
Mounting Type Through Hole Through Hole Surface Mount Through Hole
Number of Inputs 2 2 2 2
Current - Quiescent (Max) 5 µA 1 µA 1 µA 1 µA
Voltage - Supply 3V ~ 18V 3V ~ 15V 3V ~ 18V 3V ~ 18V
Package Tube Tube Tape & Reel (TR) Tube

CD4081BF3A Datasheet PDF

Download CD4081BF3A pdf datasheets and Texas Instruments documentation for CD4081BF3A - Texas Instruments.

Datasheets
CD4073B, CD4081B, CD4082B.pdf
