HomeProductsIntegrated Circuits (ICs)Logic - Gates and InvertersCD4069UBM96

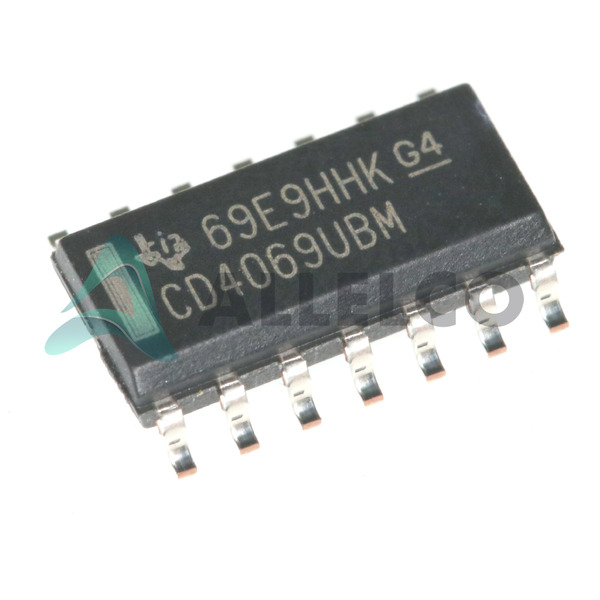

CD4069UBM96 Image
Image may be representation.
See specifications for product details.

CD4069UBM96 - Texas Instruments

Manufacturer Part Number
CD4069UBM96
Manufacturer
Texas Instruments
Allelco Part Number
32D-CD4069UBM96
ECAD Model
Parts Description
IC INVERTER 6CH 1-INP 14SOIC
Detailed Description
Package
14-SOIC (0.154", 3.90mm Width)
Data sheet
Logic Guide.pdf
CD4069UB Types.pdf
RoHs Status
ROHS3 Compliant
In stock: 184960

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

CD4069UBM96 Tech Specifications
Texas Instruments - CD4069UBM96 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CD4069UBM96

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 3V ~ 18V
Supplier Device Package 14-SOIC
Series 4000B
Package / Case 14-SOIC (0.154", 3.90mm Width)
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 125°C
Number of Inputs 1
Number of Circuits 6
Product Attribute Attribute Value
Mounting Type Surface Mount
Max Propagation Delay @ V, Max CL 50ns @ 15V, 50pF
Logic Type Inverter
Input Logic Level - Low 1V ~ 2.5V
Input Logic Level - High 4V ~ 12.5V
Features -
Current - Quiescent (Max) 1 µA
Current - Output High, Low 3.4mA, 3.4mA
Base Product Number CD4069

Parts Introduction

Manufacturer Part Number

CD4069UBM96

Manufacturer

Texas Instruments

Introduction

The CD4069UBM96 is a CMOS hex inverter circuit designed for digital logic applications requiring inverting functions. Manufactured by Texas Instruments, it is part of the 4000B series, featuring six independent inverter circuits in a single package.

Product Features and Performance

Contains six independent inverters

Supports wide operating voltage range: 3V to 18V

Ultra-low quiescent current: 1 µA (maximum)

Balanced output drive: 3.4mA High and Low

Compatible with TTL levels, ensuring versatility in use

Input logic level Low: 1V to 2.5V; High: 4V to 12.5V

Maximum propagation delay: 50ns at 15V, 50pF load

Operational across a wide temperature range: -55°C to 125°C

Product Advantages

High noise immunity characteristic of CMOS devices

Low power consumption suitable for battery-operated equipment

Versatility in operating voltage for a broad range of applications

High reliability and longer operational lifespan due to low power dissipation

Key Technical Parameters

Logic Type: Inverter

Number of Circuits: 6

Voltage Supply: 3V ~ 18V

Current Quiescent (Max): 1 µA

Current Output High, Low: 3.4mA, 3.4mA

Max Propagation Delay @ V, Max CL: 50ns @ 15V, 50pF

Operating Temperature: -55°C ~ 125°C

Quality and Safety Features

Built to meet high Texas Instruments standards for quality and safety

Protection against electrostatic discharge damage

Lead-free and RoHS compliant, supporting environmental sustainability

Compatibility

Compatible with TTL and CMOS levels, enhancing interfacing flexibility

Can be used in a wide range of digital logic circuits due to its inverting function

Application Areas

Digital electronics circuits

Signal pulse shaping

Oscillator circuits

Logic model implementation

Battery-operated devices

Product Lifecycle

Status: Active

Indicates ongoing manufacture and support, not near discontinuation

Upgrades or replacement parts are readily available

Several Key Reasons to Choose This Product

High-quality, reliable performance stemming from Texas Instruments' manufacturing

Flexibility in application due to wide voltage supply range and compatibility

Low power consumption, enhancing device longevity, especially in battery-operated applications

Robust design allowing operation under wide temperature ranges and environmental conditions

Simplifies design complexities by providing six inverters in one package

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CD4069UBM96

Product Attribute CD4069UBM96 CD4069UBM CD4069UBCSJX CD4069UBPWR
Part Number CD4069UBM96 CD4069UBM CD4069UBCSJX CD4069UBPWR
Manufacturer Texas Instruments Texas Instruments Fairchild Semiconductor Texas Instruments
Current - Quiescent (Max) 1 µA 1 µA 1 µA 1 µA
Voltage - Supply 3V ~ 18V 3V ~ 18V 3V ~ 15V 3V ~ 18V
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Package Tape & Reel (TR) Tube Bulk Tape & Reel (TR)
Series 4000B 4000B 4000B 4000B
Max Propagation Delay @ V, Max CL 50ns @ 15V, 50pF 50ns @ 15V, 50pF 50ns @ 15V, 50pF 50ns @ 15V, 50pF
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Current - Output High, Low 3.4mA, 3.4mA 3.4mA, 3.4mA 3.4mA, 3.4mA 3.4mA, 3.4mA
Number of Inputs 1 1 1 1
Number of Circuits 6 6 6 6
Supplier Device Package 14-SOIC 14-SOIC 14-SOP 14-TSSOP
Base Product Number CD4069 CD4069 CD4069 CD4069
Logic Type Inverter Inverter Inverter Inverter
Features - - - -
Input Logic Level - High 4V ~ 12.5V 4V ~ 12.5V 4V ~ 12V 4V ~ 12.5V
Input Logic Level - Low 1V ~ 2.5V 1V ~ 2.5V 1V ~ 3V 1V ~ 2.5V
Package / Case 14-SOIC (0.154", 3.90mm Width) 14-SOIC (0.154", 3.90mm Width) 14-SOIC (0.209", 5.30mm Width) 14-TSSOP (0.173", 4.40mm Width)

CD4069UBM96 Datasheet PDF

Download CD4069UBM96 pdf datasheets and Texas Instruments documentation for CD4069UBM96 - Texas Instruments.

Datasheets
Logic Guide.pdf
PCN Packaging
Reel 10/Jul/2018.pdf Reels 19/Apr/2018.pdf
PCN Design/Specification
CD4069UB 12/Feb/2019.pdf
HTML Datasheet
CD4069UB Types.pdf
