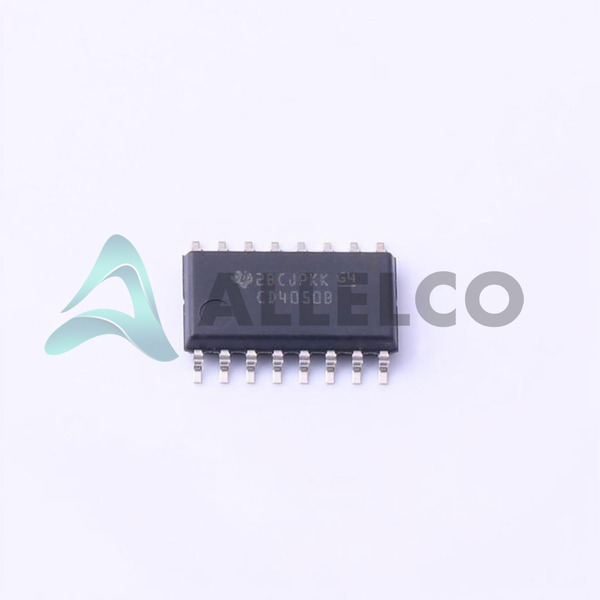

CD4050BNSR - Texas Instruments

Manufacturer Part Number

CD4050BNSR

Manufacturer

Texas Instruments

Introduction

The CD4050BNSR is a hex non-inverting buffer integrated circuit, part of the 4000B series, designed for logic level conversion and buffering.

Product Features and Performance

Six independent non-inverting buffer circuits

Logic level conversion capability from high to low voltage

Standard output with push-pull configuration

Wide operating voltage range compatible with various systems

Can source or sink current for direct drive applications

High output current drive capability

Product Advantages

Flexibility due to wide voltage range support

High current drive suitable for driving LEDs or small relays

Suitable for harsh environmental conditions given the extended temperature range

Compatible with bus-oriented systems given its buffering capability

Key Technical Parameters

Elements: 6

Bits per Element: 1

Current Output High, Low: 8mA, 48mA

Voltage Supply: 3V to 18V

Operating Temperature: -55°C to 125°C

Quality and Safety Features

Over-temperature protection

High impedance state during power up/down to prevent system damage

Compliance with JEDEC standards for global acceptance

Compatibility

Logic Buffers, Drivers, Receivers, Transceivers category compatibility

Common footprint for simplified PCB layout

Application Areas

Logic signal buffering and level shifting

Data acquisition systems

Communication systems

Microcontroller input/output buffering

Product Lifecycle

Active status indicating ongoing production

No indication of nearing discontinuation allowing for long-term project integration

Several Key Reasons to Choose This Product

Reliable performance across a broad temperature range

Suitable for a variety of applications due to the high-voltage range

Ease of use in mixed voltage systems for converting and interfacing logic levels

Manufactured by Texas Instruments, a leading semiconductor company ensuring industry-wide compatibility and reliability

Supply chain convenience with Tape & Reel packaging for automatic placement.
