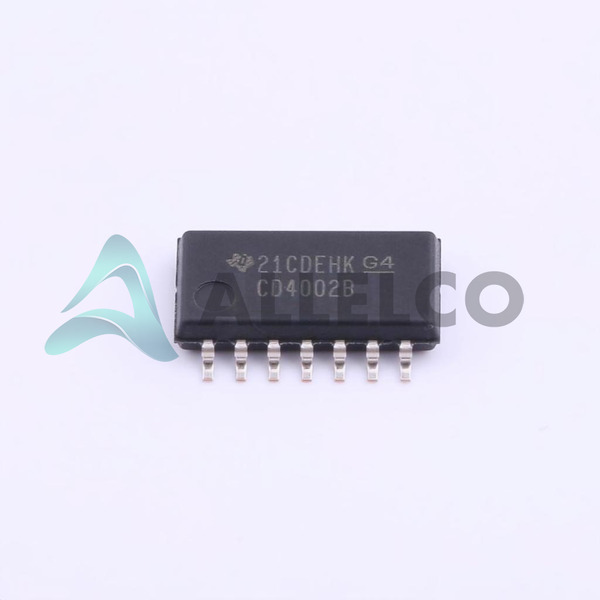

Image may be representation.
See specifications for product details.

CD4002BNSR - Texas Instruments

Manufacturer Part Number
CD4002BNSR
Manufacturer
Texas Instruments
Allelco Part Number
32D-CD4002BNSR
ECAD Model
Parts Description
IC GATE NOR 2CH 4-INP 14SOP
Detailed Description
Package
14-SOIC (0.209', 5.30mm Width)
Data sheet
Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
In stock: 121040

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

CD4002BNSR Tech Specifications
Texas Instruments - CD4002BNSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CD4002BNSR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 3V ~ 18V
Supplier Device Package 14-SO
Series 4000B
Package / Case 14-SOIC (0.209', 5.30mm Width)
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 125°C
Number of Inputs 4
Number of Circuits 2
Product Attribute Attribute Value
Mounting Type Surface Mount
Max Propagation Delay @ V, Max CL 90ns @ 15V, 50pF
Logic Type NOR Gate
Input Logic Level - Low 1.5V ~ 4V
Input Logic Level - High 3.5V ~ 11V
Features -
Current - Quiescent (Max) 1 µA
Current - Output High, Low 3.4mA, 3.4mA
Base Product Number CD4002

Parts Introduction

Manufacturer Part Number

CD4002BNSR

Manufacturer

Texas Instruments

Introduction

High-quality integrated circuit used in various digital applications.

Product Features and Performance

Dual 4-input NOR gate design

Wide supply voltage range (3V to 18V)

Low quiescent current (1 µA Max)

Balanced output drive (3.4mA High, 3.4mA Low)

Wide operating temperature range (-55°C to 125°C)

Product Advantages

Robust output drive capable of sinking and sourcing current

Flexible input logic levels

High noise immunity

Key Technical Parameters

Logic Type: NOR Gate

Number of Circuits: 2

Number of Inputs: 4

Voltage - Supply: 3V to 18V

Current - Quiescent: 1 µA Max

Current - Output High, Low: 3.4mA

Input Logic Level - Low: 1.5V to 4V

Input Logic Level - High: 3.5V to 11V

Max Propagation Delay @ V, Max CL: 90ns @ 15V, 50pF

Mounting Type: Surface Mount

Supplier Device Package: 14-SO

Package / Case: 14-SOIC

Quality and Safety Features

Designed for high reliability and stability

Complies with stringent industry standards

Compatibility

Compatible with other logic families with appropriate interfacing

Fits standard 14-SOIC surface mount footprint

Application Areas

Digital electronics

Timing circuits

Control systems

Complex logic circuitry

Product Lifecycle

Active product status

Not nearing discontinuation at time of knowledge cutoff

Replacements or upgrades may vary based on evolution of technology standards

Several Key Reasons to Choose This Product

Stable operation across a wide range of voltages and temperatures

Low power consumption

Reliability from a reputable manufacturer Texas Instruments

Versatility for use in various digital logic applications

Proven technology with the 4000B Series legacy

Availability in Tape & Reel packaging for automated assembly processes

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CD4002BNSR

Product Attribute CD4002BNSR CD4001UBPWR CD4002BF CD4001UBM96
Part Number CD4002BNSR CD4001UBPWR CD4002BF CD4001UBM96
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Supply 3V ~ 18V 3V ~ 18V - 3V ~ 18V
Current - Quiescent (Max) 1 µA 1 µA - 1 µA
Input Logic Level - Low 1.5V ~ 4V 1V ~ 2.5V - 1V ~ 2.5V
Number of Circuits 2 4 - 4
Input Logic Level - High 3.5V ~ 11V 4V ~ 12.5V - 4V ~ 12.5V
Number of Inputs 4 2 - 2
Package / Case 14-SOIC (0.209', 5.30mm Width) 14-TSSOP (0.173', 4.40mm Width) - 14-SOIC (0.154', 3.90mm Width)
Package Tape & Reel (TR) Tape & Reel (TR) Bulk Tape & Reel (TR)
Series 4000B 4000B * 4000B
Features - - - -
Max Propagation Delay @ V, Max CL 90ns @ 15V, 50pF 50ns @ 15V, 50pF - 50ns @ 15V, 50pF
Mounting Type Surface Mount Surface Mount - Surface Mount
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C - -55°C ~ 125°C
Current - Output High, Low 3.4mA, 3.4mA 3.4mA, 3.4mA - 3.4mA, 3.4mA
Base Product Number CD4002 CD4001 CD4002 CD4001
Logic Type NOR Gate NOR Gate - NOR Gate
Supplier Device Package 14-SO 14-TSSOP - 14-SOIC
