HomeProductsRF/IF and RFIDRF Transceiver ICsCC3120MODRNMMOBR

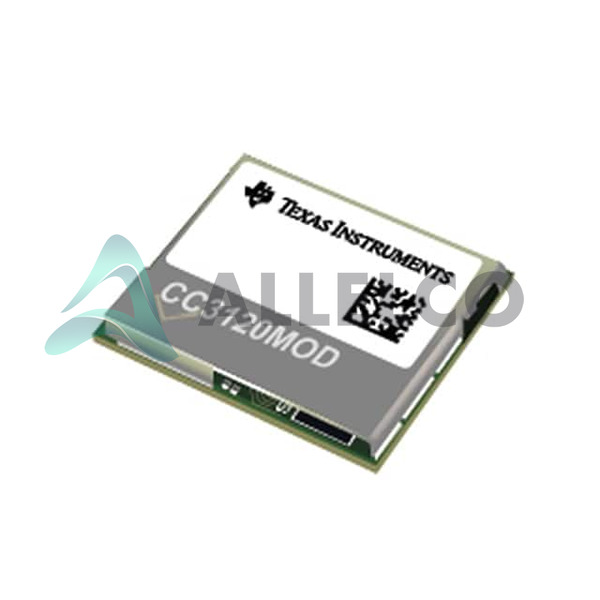

CC3120MODRNMMOBR Image
Image may be representation.
See specifications for product details.
EXPRESS OPTION
Payment method

CC3120MODRNMMOBR - Texas Instruments

Manufacturer Part Number
CC3120MODRNMMOBR
Manufacturer
Texas Instruments
Allelco Part Number
32D-CC3120MODRNMMOBR
ECAD Model
Parts Description
IC RF TXRX+MCU WIFI 63SMD
Package
63-SMD Module
Data sheet
CC3120MOD Datasheet.pdf
RoHs Status
ROHS3 Compliant
Our certification
In stock: 3795

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

CC3120MODRNMMOBR Tech Specifications
Texas Instruments - CC3120MODRNMMOBR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CC3120MODRNMMOBR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 2.3V ~ 3.6V
Type TxRx + MCU
Supplier Device Package 63-QFM (20.5x17.5)
Series SimpleLink™
Serial Interfaces I²C, SPI, UART
Sensitivity -95dBm
RF Family/Standard WiFi
Protocol 802.11b/g/n
Power - Output 17dBm
Package / Case 63-SMD Module
Product Attribute Attribute Value
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Modulation DSSS, OFDM
Memory Size -
Frequency 2.4GHz
Data Rate (Max) -
Current - Transmitting 229mA
Current - Receiving 59mA
Base Product Number CC3120

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

CC3120MODRNMMOBR

Manufacturer

Texas Instruments

Introduction

Highly integrated wireless microcontroller unit (MCU) with Wi-Fi connectivity

Combines RF transceiver, MCU, and power management in a single package

Product Features and Performance

Supports 2.4GHz Wi-Fi 802.11b/g/n

Transmit power up to 17dBm

Receiver sensitivity down to -95dBm

Integrated 32-bit ARM Cortex-M4 MCU

Embedded Wi-Fi and network stacks

Supports DSSS and OFDM modulation

Serial interfaces: I2C, SPI, UART

Wide operating temperature range: -40°C to 85°C

Product Advantages

Highly integrated solution reduces system complexity

Low power consumption for battery-powered applications

Simplified Wi-Fi connectivity with embedded stacks

Flexible MCU for application-specific processing

Key Technical Parameters

Frequency: 2.4GHz

Supply Voltage: 2.3V to 3.6V

Transmit Current: 229mA

Receive Current: 59mA

Package: 63-QFM (20.5x17.5mm)

Quality and Safety Features

RoHS3 compliant

Industrial-grade operating temperature range

Compatibility

Suitable for a wide range of Wi-Fi-enabled applications

Application Areas

Internet of Things (IoT)

Wireless sensing

Home automation

Industrial control

Wearable devices

Product Lifecycle

This product is currently in active production and is not nearing discontinuation.

Texas Instruments offers a range of compatible and updated products for future upgrades and replacements.

Key Reasons to Choose This Product

Highly integrated solution simplifies system design and reduces component count

Low power consumption for battery-powered applications

Robust performance with wide operating temperature range

Flexible MCU for application-specific processing

Embedded Wi-Fi and network stacks for simplified connectivity

Extensive compatibility and application areas

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CC3120MODRNMMOBR

Product Attribute CC3120MODRNMMOBR CC3200MODR1M2AMOBR CC3100R11MRGC CC3200R1M1RGCR
Part Number CC3120MODRNMMOBR CC3200MODR1M2AMOBR CC3100R11MRGC CC3200R1M1RGCR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Operating Temperature -40°C ~ 85°C -20°C ~ 70°C -40°C ~ 85°C -40°C ~ 85°C
Package Tape & Reel (TR) Tape & Reel (TR) Tray Tape & Reel (TR)
RF Family/Standard WiFi WiFi WiFi WiFi
Frequency 2.4GHz 2.4GHz 2.4GHz 2.4GHz
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package 63-QFM (20.5x17.5) 63-QFM (20.5x17.5) 64-VQFN (9x9) 64-VQFN (9x9)
Current - Transmitting 229mA 278mA 160mA ~ 272mA 53mA ~ 59mA
Modulation DSSS, OFDM - CCK, DSSS, OFDM DSSS, OFDM
Package / Case 63-SMD Module 63-SMD Module 64-VFQFN Exposed Pad 64-VFQFN Exposed Pad
Voltage - Supply 2.3V ~ 3.6V 2.3V ~ 3.6V 2.1V ~ 3.6V 2.1V ~ 3.6V
Memory Size - - - 128kB RAM, 64kB ROM
Current - Receiving 59mA 59mA 53mA 53mA ~ 59mA
Type TxRx + MCU TxRx + MCU TxRx + MCU TxRx + MCU
Serial Interfaces I²C, SPI, UART I²C, SPI, UART SPI, UART I²C, I²S, JTAG, SPI, UART
Base Product Number CC3120 CC3200 CC3100 CC3200
Power - Output 17dBm 17dBm 18.3dBm 18.3dBm
Data Rate (Max) - 54Mbps 16Mbps 54Mbps
Protocol 802.11b/g/n 802.11b/g/n 802.11b/g/n 802.11b/g/n
Sensitivity -95dBm -94.7dBm -95.7dBm -95.7dBm
Series SimpleLink™ SimpleLink™ SimpleLink™ SimpleLink™

CC3120MODRNMMOBR Datasheet PDF
