CC2564MODACMOG - Texas Instruments

Manufacturer Part Number

CC2564MODACMOG

Manufacturer

Texas Instruments

Introduction

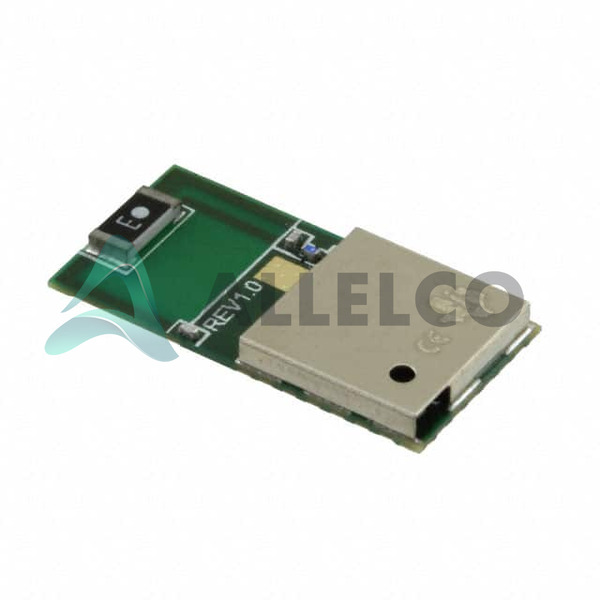

This product is a Bluetooth v4.0 Dual Mode RF Transceiver Module based on the CC2564 integrated circuit from Texas Instruments.

Product Features and Performance

4GHz operating frequency

-30°C to 85°C operating temperature range

2V to 4.8V supply voltage

5mA to 41.2mA transmit current

10dBm output power

-93dBm receiver sensitivity

UART serial interface

DPSK, DQPSK, GFSK modulation

9Mbps data rate

Product Advantages

Integrated antenna for compact design

Surface mount package for easy assembly

ROHS3 compliant for environmental compatibility

Key Technical Parameters

Frequency: 2.4GHz

Voltage: 2.2V to 4.8V

Transmit Current: 40.5mA to 41.2mA

Output Power: 10dBm

Receiver Sensitivity: -93dBm

Data Rate: 3.9Mbps

Modulation: DPSK, DQPSK, GFSK

Quality and Safety Features

ROHS3 compliant

Compatibility

This product is compatible with Bluetooth v4.0 Dual Mode devices and applications.

Application Areas

Bluetooth-enabled devices and systems

Wireless connectivity for industrial, medical, and consumer electronics

Product Lifecycle

This product is an active and available part from Texas Instruments. There are no known plans for discontinuation at this time.

Key Reasons to Choose This Product

Compact and integrated design with surface mount package and integrated antenna

Wide operating temperature range of -30°C to 85°C

Low power consumption with 40.5mA to 41.2mA transmit current

High output power of 10dBm and excellent receiver sensitivity of -93dBm

ROHS3 compliance for environmental compatibility

UART serial interface for easy integration into systems

Supports Bluetooth v4.0 Dual Mode for broad compatibility
