HomeProductsRF/IF and RFIDRF Transceiver ICsCC1100RTKR

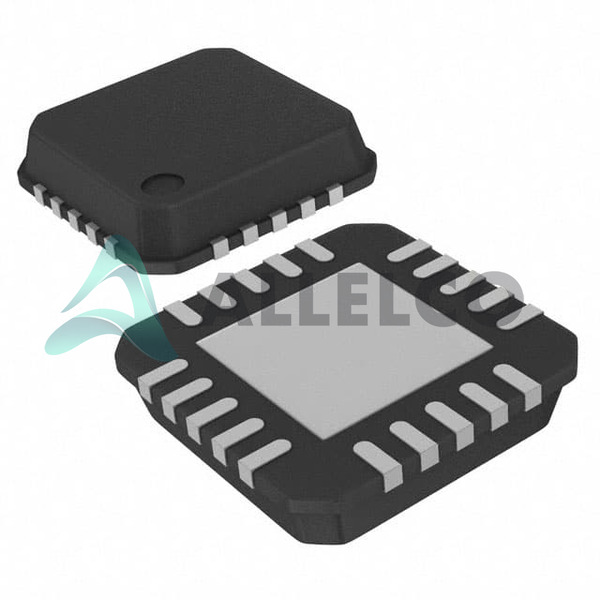

CC1100RTKR Image
CC1100RTKR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

CC1100RTKR - Texas Instruments

Manufacturer Part Number
CC1100RTKR
Manufacturer
Texas Instruments
Allelco Part Number
32D-CC1100RTKR
ECAD Model
Parts Description
IC RF TXRX ISM<1GHZ 20VFQFN
Package
20-VFQFN Exposed Pad
Data sheet
CC1100.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 10440

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

CC1100RTKR Tech Specifications
Texas Instruments - CC1100RTKR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CC1100RTKR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 1.8V ~ 3.6V
Type TxRx Only
Supplier Device Package 20-QFN (4x4)
Series -
Serial Interfaces SPI
Sensitivity -111dBm
RF Family/Standard General ISM < 1GHz
Protocol -
Power - Output 10dBm
Package / Case 20-VFQFN Exposed Pad
Product Attribute Attribute Value
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Modulation 2FSK, ASK, GFSK, MSK, OOK
Memory Size -
Frequency 300MHz ~ 348MHz, 400MHz ~ 464MHz, 800MHz ~ 928MHz
Data Rate (Max) 500kBaud
Current - Transmitting 12.3mA ~ 31.1mA
Current - Receiving 13.9mA ~ 15.9mA
Base Product Number CC1100

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A991G
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

CC1100RTKR

Manufacturer

Texas Instruments

Introduction

RF/IF and RFID IC

Low-power RF transceiver for wireless applications

Product Features and Performance

Frequency range: 300MHz 348MHz, 400MHz 464MHz, 800MHz 928MHz

Operating temperature: -40°C to 85°C

Voltage supply: 1.8V to 3.6V

Transmit current: 12.3mA to 31.1mA

Receive current: 13.9mA to 15.9mA

Output power: 10dBm

Data rate: up to 500kBaud

Sensitivity: -111dBm

Modulation: 2FSK, ASK, GFSK, MSK, OOK

Product Advantages

Low power consumption

High performance and sensitivity

Wide frequency range

Flexible modulation options

Key Technical Parameters

Package: 20-VFQFN Exposed Pad

Mounting type: Surface Mount

RF family/standard: General ISM < 1GHz

Serial interface: SPI

Quality and Safety Features

RoHS3 compliant

Compatibility

Suitable for various wireless applications

Application Areas

Wireless sensor networks

Industrial automation

Home automation

Metering

Security systems

Telemetry

Product Lifecycle

Currently available

No indication of discontinuation

Replacement or upgrade options may be available

Key Reasons to Choose This Product

Low power consumption for extended battery life

Wide frequency range for global compatibility

Flexible modulation options for various applications

High performance and sensitivity for reliable communication

RoHS3 compliance for environmental safety

Suitable for a wide range of wireless applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CC1100RTKR

Product Attribute CC1100RTKR CC1101RGPR CC1100RTKG3 CC1101RGP
Part Number CC1100RTKR CC1101RGPR CC1100RTKG3 CC1101RGP
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Protocol - - - -
Power - Output 10dBm 12dBm 10dBm 12dBm
RF Family/Standard General ISM < 1GHz General ISM < 1GHz General ISM < 1GHz General ISM < 1GHz
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Sensitivity -111dBm -116dBm -111dBm -116dBm
Memory Size - - - -
Package Tape & Reel (TR) Tape & Reel (TR) Tube Tube
Current - Transmitting 12.3mA ~ 31.1mA 12.3mA ~ 34.2mA 12.3mA ~ 31.1mA 12.3mA ~ 34.2mA
Current - Receiving 13.9mA ~ 15.9mA 14.3mA ~ 17.1mA 13.9mA ~ 15.9mA 14.3mA ~ 17.1mA
Base Product Number CC1100 CC1101 CC1100 CC1101
Frequency 300MHz ~ 348MHz, 400MHz ~ 464MHz, 800MHz ~ 928MHz 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz 300MHz ~ 348MHz, 400MHz ~ 464MHz, 800MHz ~ 928MHz 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz
Supplier Device Package 20-QFN (4x4) 20-QFN (4x4) 20-QFN (4x4) 20-QFN (4x4)
Voltage - Supply 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V
Data Rate (Max) 500kBaud 600kbps 500kBaud 600kbps
Series - - - -
Modulation 2FSK, ASK, GFSK, MSK, OOK 2FSK, 4FSK, ASK, GFSK, MSK, OOK 2FSK, ASK, GFSK, MSK, OOK 2FSK, 4FSK, ASK, GFSK, MSK, OOK
Serial Interfaces SPI SPI SPI SPI
Type TxRx Only TxRx Only TxRx Only TxRx Only

CC1100RTKR Datasheet PDF

Download CC1100RTKR pdf datasheets and Texas Instruments documentation for CC1100RTKR - Texas Instruments.

Datasheets
CC1100.pdf
