HomeProductsIntegrated Circuits (ICs)PMIC - Battery ChargersBQ24297RGET

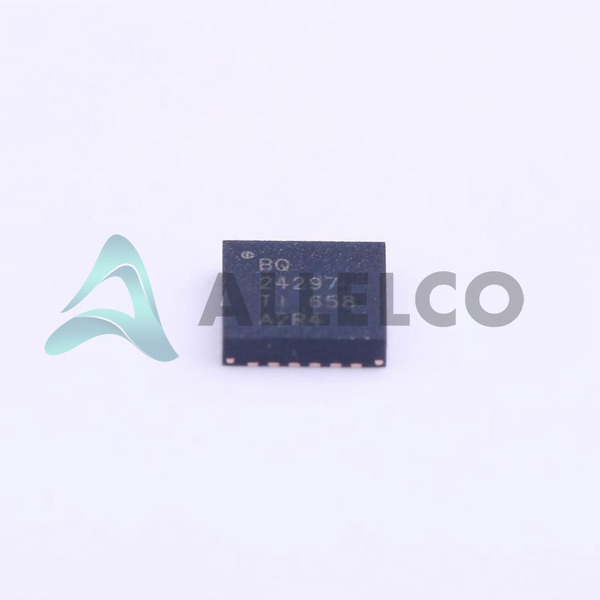

BQ24297RGET Image
BQ24297RGET Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

BQ24297RGET - Texas Instruments

Manufacturer Part Number
BQ24297RGET
Manufacturer
Texas Instruments
Allelco Part Number
32D-BQ24297RGET
ECAD Model
Parts Description
IC BATT CHG LI-ION 1CELL 24VQFN
Package
24-VFQFN Exposed Pad
Data sheet
Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 13063

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

BQ24297RGET Tech Specifications
Texas Instruments - BQ24297RGET technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - BQ24297RGET

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Max) 6.2V
Supplier Device Package 24-VQFN (4x4)
Series -
Programmable Features -
Package / Case 24-VFQFN Exposed Pad
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C (TA)
Number of Cells 1
Product Attribute Attribute Value
Mounting Type Surface Mount
Interface I²C
Fault Protection Over Current, Over Temperature, Over Voltage
Current - Charging Constant - Programmable
Charge Current - Max 3A
Battery Pack Voltage 4.2V
Battery Chemistry Lithium Ion/Polymer
Base Product Number BQ24297

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

BQ24297RGET

Manufacturer

Texas Instruments

Introduction

Integrated power management IC with battery charge management for single-cell Li-Ion batteries

Product Features and Performance

I2C Control Interface

High-Efficiency Switch Mode Charger

Thermal Regulation and Protection

Programmable Charge Current up to 3A

Input Voltage DPM (Dynamic Power Management)

LED Charge Status Indicator Support

High-Accuracy Voltage and Current Regulation

Safety Timer with Reset Control

Product Advantages

Optimized for USB Voltage Input Range

Configurable Charging Parameters via I2C

Built-in Battery Detection

Thermal Shutdown and Protection Features

Key Technical Parameters

Battery Chemistry: Lithium Ion/Polymer

Number of Cells: 1

Constant Charging Current Programmable

Over Current, Over Temperature, Over Voltage Protection

Maximum Charge Current: 3A

Battery Pack Voltage: 4.2V

Supply Voltage (Max): 6.2V

Quality and Safety Features

Battery Temperature Sensing and Protection

Safety Timer to Prevent Prolonged Charging

JEITA Compliance for Battery Temperature Monitoring

Compatibility

Supports Standard I2C Bus Interface

Compatible with Various Microcontrollers for Charge Parameter Control

Application Areas

Smartphone and Tablet Battery Charging

Portable Electronics Battery Management

Power Banks and Portable Chargers

Wearable Devices Requiring Battery Charging

Product Lifecycle

Product Status: Active

Not Nearing Discontinuation

Availability of Replacements or Upgrades Not Specified

Several Key Reasons to Choose This Product

High Charge Efficiency for Faster Charging

Flexible Programming via I2C for Specific Application Needs

Comprehensive Fault Protection Features for Safe Operation

Wide Operating Temperature Range for Versatile Use in Different Environments

Compact Package Size Suitable for Space-Constrained Applications

Proven Manufacturer with a Reputation for Quality and Reliability

Parts with Similar Specifications
