HomeProductsIntegrated Circuits (ICs)PMIC - Voltage ReferenceATL432BIDBZR

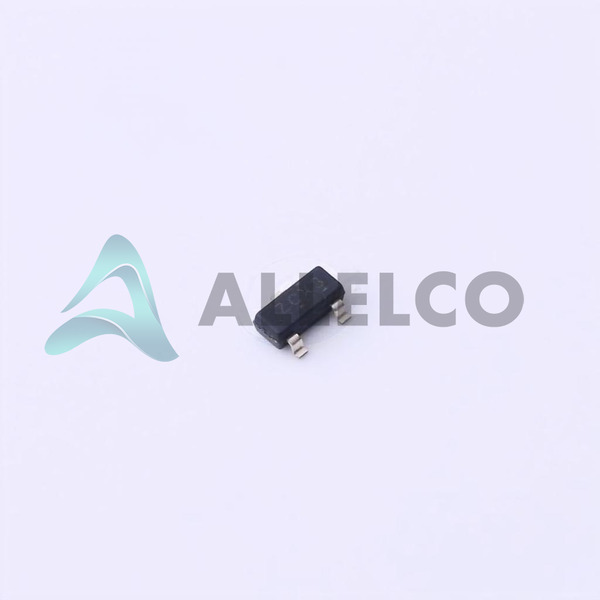

ATL432BIDBZR Image
ATL432BIDBZR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

ATL432BIDBZR - Texas Instruments

Manufacturer Part Number
ATL432BIDBZR
Manufacturer
Texas Instruments
Allelco Part Number
32D-ATL432BIDBZR
ECAD Model
Parts Description
IC VREF SHUNT ADJ 0.5% SOT23-3
Detailed Description
Package
TO-236-3, SC-59, SOT-23-3
Data sheet
ATL432BIDBZR.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 199970

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

ATL432BIDBZR Tech Specifications
Texas Instruments - ATL432BIDBZR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ATL432BIDBZR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 2.5V
Voltage - Output (Max) 36 V
Voltage - Input -
Tolerance ±0.5%
Temperature Coefficient 48ppm/°C
Supplier Device Package SOT-23-3
Series -
Reference Type Shunt
Package / Case TO-236-3, SC-59, SOT-23-3
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Operating Temperature -40°C ~ 85°C (TA)
Noise - 10Hz to 10kHz -
Noise - 0.1Hz to 10Hz -
Mounting Type Surface Mount
Current - Supply -
Current - Output 100 mA
Current - Cathode 35 µA
Base Product Number ATL432

Parts Introduction

Manufacturer Part Number

ATL432BIDBZR

Manufacturer

Texas Instruments

Introduction

Integrated circuit (IC) for voltage reference

Product Features and Performance

Adjustable output voltage from 2.5V to 36V

Output current capacity of 100mA

Temperature coefficient of 48ppm/°C

Tolerance of ±0.5%

Capable of handling up to 35A cathode current

Product Advantages

Wide output voltage range

High output current capacity

Stable performance over temperature

Tight voltage tolerance

Key Technical Parameters

Operating temperature range: -40°C to 85°C

Packaging: SOT-23-3, Tape & Reel

Quality and Safety Features

RoHS3 compliant

Compatibility

Surface mount package

Suitable for a variety of electronic applications

Application Areas

Power supplies

Voltage regulation

Battery-powered devices

Instrumentation

Industrial electronics

Product Lifecycle

Currently available

No indication of discontinuation

Several Key Reasons to Choose This Product

Wide output voltage range for flexibility

High output current capacity for power-hungry applications

Stable performance over temperature for reliable operation

Tight voltage tolerance for precision

RoHS3 compliance for environmental considerations

Surface mount package for easy integration

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments ATL432BIDBZR

Product Attribute ATL432BIDBZR ATL431LIBQDBZRQ1 ATL431LIAIDBZR ATL431LIAQDBZR
Part Number ATL432BIDBZR ATL431LIBQDBZRQ1 ATL431LIAIDBZR ATL431LIAQDBZR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Current - Cathode 35 µA 80 µA 100 µA 100 µA
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Current - Supply - - - -
Series - Automotive, AEC-Q100 - -
Voltage - Output (Max) 36 V 36 V 36 V 36 V
Reference Type Shunt Shunt Shunt Shunt
Current - Output 100 mA 15 mA 15 mA 15 mA
Supplier Device Package SOT-23-3 SOT-23-3 SOT-23-3 SOT-23-3
Voltage - Output (Min/Fixed) 2.5V 2.5V 2.5V 2.5V
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 125°C (TA) -40°C ~ 85°C (TA) -40°C ~ 125°C (TA)
Noise - 0.1Hz to 10Hz - - - -
Noise - 10Hz to 10kHz - - - -
Base Product Number ATL432 ATL431 ATL431 ATL431
Output Type Adjustable Adjustable Adjustable Adjustable
Package / Case TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3
Voltage - Input - - - -
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Tolerance ±0.5% ±0.5% ±1% ±1%
Temperature Coefficient 48ppm/°C - - -

ATL432BIDBZR Datasheet PDF

Download ATL432BIDBZR pdf datasheets and Texas Instruments documentation for ATL432BIDBZR - Texas Instruments.
