ADS8519IBDB - Texas Instruments

Manufacturer Part Number

ADS8519IBDB

Manufacturer

Texas Instruments

Introduction

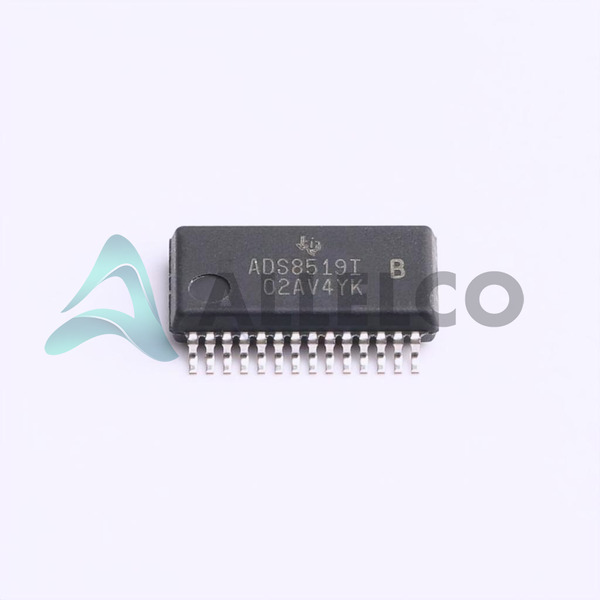

ADS8519IBDB is a high-performance 16-bit Analog to Digital Converter (ADC) designed by Texas Instruments, targeting precise data acquisition applications. It is offered in a 28-SSOP package and operates across a wide temperature range, making it suitable for demanding environments.

Product Features and Performance

16-bit resolution for high precision measurements

Sampling Rate up to 250k Samples Per Second for fast data collection

Single-ended input type supports straightforward sensor integration

SPI Data Interface ensures easy connectivity with most microcontrollers and digital systems

Features Successive Approximation Register (SAR) architecture for reliable performance

Supports both external and internal reference voltage, providing flexibility in usage

Operates with analog supply voltage of 5V and a digital supply range of 1.65V to 5.25V

Product Advantages

High resolution and fast sampling rate enable precise and timely data capture

Flexibility in reference voltage choice adds to system design convenience

SAR architecture ensures low power consumption and fast conversion times

Broad supply voltage range facilitates integration with various digital platforms without the need for additional power management

Key Technical Parameters

Number of Bits: 16

Sampling Rate: 250k Per Second

Number of Inputs: 1, Single Ended

Data Interface: SPI

Voltage Supply, Analog: 5V

Voltage Supply, Digital: 1.65V ~ 5.25V

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Operates reliably across a broad temperature range (-40°C to 85°C), ensuring suitability for industrial applications

Manufactured by Texas Instruments, a leader in semiconductor solutions, ensuring high quality and reliability

Compatibility

SPI interface enables compatibility with a wide range of microcontrollers and digital systems

Application Areas

Precision data acquisition in industries

Medical instrumentation

Industrial control systems

Laboratory equipment and research

Environmental monitoring systems

Product Lifecycle

Status: Active, indicating ongoing manufacture and support

Not currently nearing discontinuation, with replacements or upgrades not immediately necessary

Several Key Reasons to Choose This Product

High precision and fast sampling rate enhance application performance

Flexibility in system design offered by selectable reference voltage

Wide temperature range operation supports use in varied environments

Compatibility with numerous digital systems via SPI

Manufactured by Texas Instruments, ensuring quality and reliability
