Manufacturer Part Number

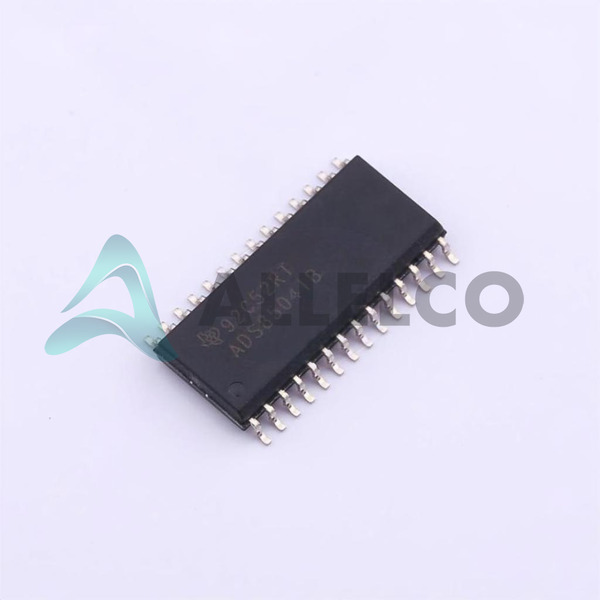

ADS8504IBDW
Manufacturer
Texas Instruments
Introduction
The ADS8504IBDW is a high-performance, 12-bit Analog to Digital Converter (ADC) designed for data acquisition systems requiring high speed and accuracy.
Product Features and Performance
12-bit resolution
Sampling Rate of 250kSPS
Single-ended input
Parallel data interface
Successive Approximation Register (SAR) architecture
External and internal reference voltage supported
Operating temperature range from -40°C to 85°C
Product Advantages
High-speed data acquisition with 250k samples per second
Flexible with both external and internal reference voltage options
Durable over a wide range of operating temperatures
Easy integration into systems with a parallel data interface
Key Technical Parameters
Resolution: 12 bits
Sampling Rate: 250k samples per second
Input Type: Single Ended
Data Interface: Parallel
Voltage Supply, Analog: 5V
Voltage Supply, Digital: 5V
Package: 28-SOIC
Quality and Safety Features
Robust operating temperature range from -40°C to 85°C ensuring reliability in extreme conditions
Compatibility
Compatible with systems requiring high-speed ADC with a parallel interface
Application Areas
High-speed data acquisition
Instrumentation
Medical imaging
Industrial process control
Product Lifecycle
The product status is Active, indicating ongoing production and support, with no current information on discontinuation or replacement options.
Several Key Reasons to Choose This Product
High resolution and fast sampling rate for precise data acquisition
Flexible voltage supply and reference options accommodate various application needs
SAR architecture ensures accurate and reliable performance
Broad operating temperature range enhances product robustness
Surface mount package for easy PCB design and space saving
From a trusted manufacturer known for quality and innovation in semiconductor technology
