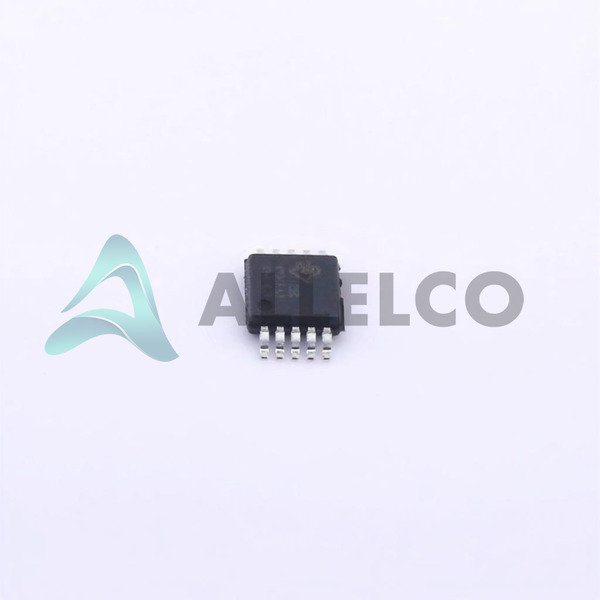

ADS8319IBDGST - Texas Instruments

Manufacturer Part Number

ADS8319IBDGST

Manufacturer

Texas Instruments

Introduction

ADS8319IBDGST is a high-performance, 16-bit analog to digital converter designed for precision data acquisition in applications where power efficiency is crucial.

Product Features and Performance

16-bit resolution

Sampling Rate of 500k samples per second

Single analog input

Input Type: Pseudo-Differential and Single Ended

Data Interface: SPI

S/H-ADC configuration

Single A/D Converter

SAR Architecture

Requires external reference

Product Advantages

High resolution and fast sampling rate enhance measurement accuracy.

Low power consumption suitable for battery-powered devices.

Compact 10-VSSOP package suitable for space-constrained applications.

Pseudo-Differential and Single Ended inputs provide flexibility in signal acquisition.

Key Technical Parameters

Number of Bits: 16

Sampling Rate (Per Second): 500k

Number of Inputs: 1

Voltage - Supply, Analog: 5V

Voltage - Supply, Digital: 2.375V ~ 5.5V

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Operational over a wide temperature range from -40°C to 85°C, ensuring reliability in harsh environments.

Surface Mount technology for robust and secure PCB mounting.

Compatibility

Compatible with SPI data interface for easy integration with most microcontrollers and digital systems.

Application Areas

Portable and battery-powered devices

Industrial instrumentation

Medical equipment monitoring

Data logging systems

Product Lifecycle

The product status is active, and it is not currently nearing discontinuation. Replacements or upgrades are available if necessary.

Several Key Reasons to Choose This Product

High precision 16-bit A/D conversion for accurate data acquisition.

Efficient sampling rate of 500k samples per second enhances real-time monitoring.

Low power consumption maximizes battery life in portable applications.

Robust operating temperature range suitable for harsh industrial environments.

Flexible input and reference options accommodate a variety of sensor types.

Direct compatibility with SPI interface allows easy integration into existing systems.
