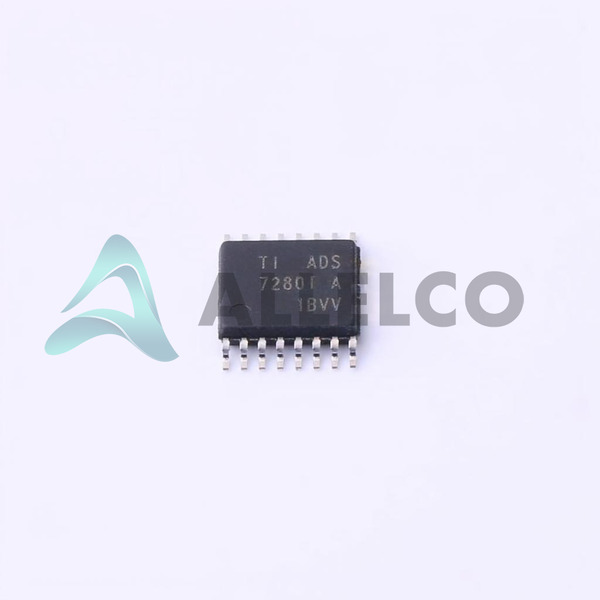

ADS7280IPW - Texas Instruments

Manufacturer Part Number

ADS7280IPW

Manufacturer

Texas Instruments

Introduction

The ADS7280IPW is a precision, low-power, 14-bit analog-to-digital converter.

Product Features and Performance

14-bit resolution

Sampling rate of 1 MSPS

Dual input channels

Supports pseudo-differential and single-ended inputs

SPI and DSP compatible data interface

MUX-S/H-ADC configuration

Single SAR A/D Converter architecture

External reference voltage required

Product Advantages

High resolution for precise conversion

Fast sampling for real-time applications

Flexible input configuration for various signal types

Compatible with various digital interfaces for easy integration

Key Technical Parameters

Number of Bits: 14

Sampling Rate: 1M per second

Number of Inputs: 2

Input Type: Pseudo-Differential, Single Ended

Data Interface: SPI, DSP

Voltage - Supply, Analog: 5V

Voltage - Supply, Digital: 1.65V to 5.5V

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Operates reliably in temperatures from -40°C to 85°C

Made by Texas Instruments, known for high-quality standards

Compatibility

Data interface compatible with SPI and DSP systems

16-TSSOP package, suitable for surface mount technology

Application Areas

Industrial control systems

Data acquisition systems

Medical instrumentation

Automotive electronics

Portable devices

Product Lifecycle

Product Status: Active

Not nearing discontinuation, and no immediate replacement or upgrade required

Several Key Reasons to Choose This Product

High-precision 14-bit resolution ideal for sensitive applications

1MSPS sampling rate suitable for fast signal processing

Texas Instruments' reputation for reliability and quality

Flexible power supply options accommodating a wide range of digital circuits

Robust operating temperature range catering to challenging environments

Minimalist 16-TSSOP packaging for compact PCB designs
