ADS5242IPAP - Texas Instruments

Manufacturer Part Number

ADS5242IPAP

Manufacturer

Texas Instruments

Introduction

High-speed, multichannel analog-to-digital converter

Product Features and Performance

12-bit resolution

65 MSPS sampling rate

4 differential inputs

LVDS serial data interface

Simultaneous Sampling on all channels

Pipelined architecture for increased speed and precision

Supports both external and internal reference voltage

Product Advantages

High data acquisition speed

Suitable for multiplexed applications

Low voltage operation to minimize power consumption

Consistent performance over industrial temperature ranges

Key Technical Parameters

12-bit resolution

4 channels

65M samples per second

Differential input type

LVDS serial output

3V to 3.6V analog supply voltage

3V to 3.6V digital supply voltage

Quality and Safety Features

Operating temperature from -40°C to 85°C

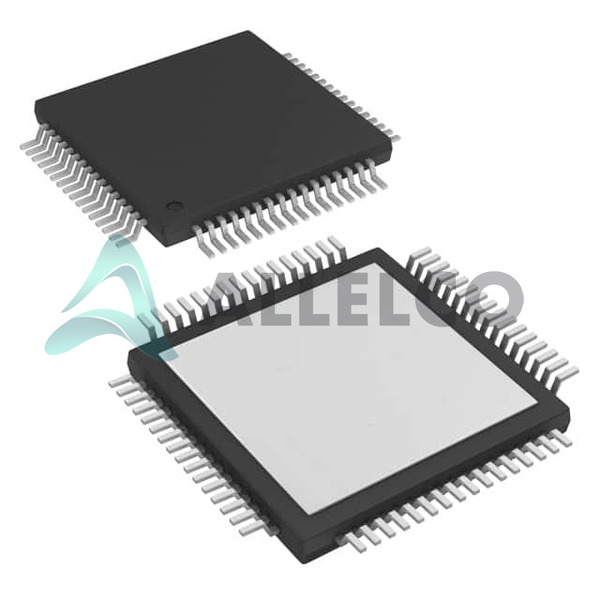

Robust PowerTQFP packaging

Compatibility

Compatible with various microcontrollers and digital signal processors with LVDS capability

Application Areas

Medical imaging

Data acquisition systems

Instrumentation and control

Communications infrastructure

Product Lifecycle

Active status

Not near discontinuation

Replacements and future upgrades available from Texas Instruments

Several Key Reasons to Choose This Product

High-speed simultaneous data acquisition for real-time processing

Multi-channel input for complex signal acquisition

Integrates easily with existing systems through serial LVDS

Robust operation in harsh industrial environments

Trusted manufacturer with reliable product support and availability

Efficient power management for battery-operated devices

Versatility in application due to comprehensive feature set
