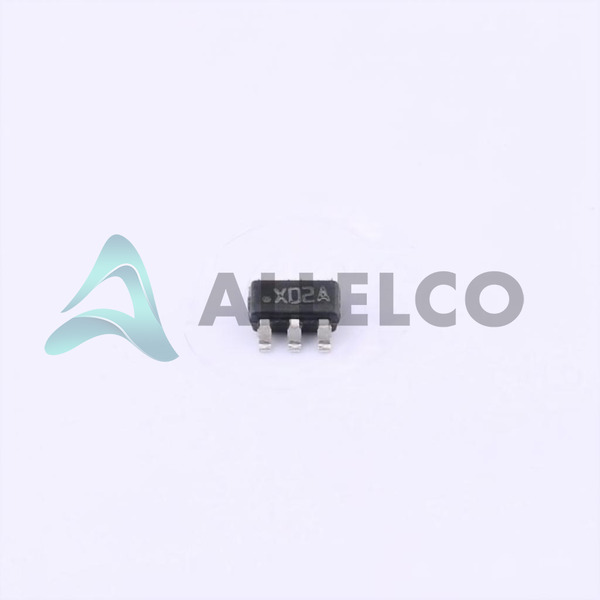

ADCS7477AIMFX - Texas Instruments

Manufacturer Part Number

ADCS7477AIMFX

Manufacturer

Texas Instruments

Introduction

ADCS7477AIMFX is an analog-to-digital converter designed for data acquisition applications, offering high-speed performance and low power consumption.

Product Features and Performance

10-bit resolution

Sampling Rate of 1 Mega Samples Per Second (1MSPS)

Single-ended input

SPI and DSP compatible data interface

Sample-and-Hold (S/H) to ADC ratio of 1:1

One analog-to-digital (A/D) converter

Successive Approximation Register (SAR) architecture

Powered by supply voltage reference

Product Advantages

High-speed data conversion

Compact SOT-23-6 package ideal for space-constrained applications

Single power supply operation range from 2.7V to 5.25V

Wide operating temperature range from -40°C to 125°C

Direct interfacing with microprocessors through SPI or DSP protocol

Key Technical Parameters

10-bit resolution

1MSPS Sampling Rate

Single-ended input configuration

SAR ADC architecture

7V to 5.25V analog and digital supply voltage

SOT-23-6 package

Quality and Safety Features

Built-in over-temperature protection

Wide operating temperature range ensuring reliability across various environments

Compatibility

Compatible with SPI and DSP interfaces for easy integration with most digital systems

Application Areas

Consumer Electronics

Industrial Control Systems

Medical Instrumentation

Communication Infrastructure

Product Lifecycle

Obsolete product

Potential replacement or upgrade options may be available from the manufacturer

Several Key Reasons to Choose This Product

High-speed ADC suitable for dynamic data acquisition

Low operating voltages catering to modern low-power circuits

Simplified design with a single-ended input reducing complexity

Robust performance in extreme temperatures making it versatile across applications

Ease of system integration through standard communication protocols like SPI and DSP

Ultra-compact SOT-23-6 footprint ideal for size-sensitive electronic designs
