B13B-PH-SM3-TB - JST Sales America Inc.

Manufacturer Part Number

B13B-PH-SM3-TB

Manufacturer

jst

Introduction

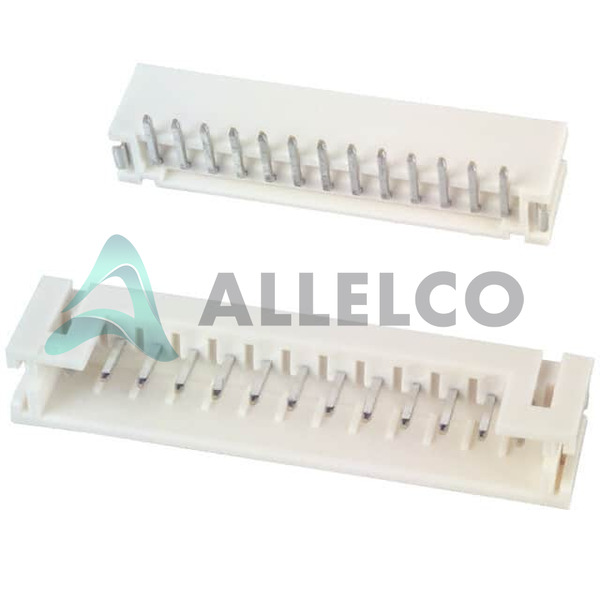

The B13B-PH-SM3-TB is a rectangular connector header with male pins from JST. It features a 13-position, 1-row design with a 2.00mm pitch and a shrouded, surface mount style. This connector is suitable for a wide range of board-to-cable or board-to-wire applications.

Product Features and Performance

13-position, 1-row design

00mm (0.079") pitch

Shrouded, surface mount style

Solder termination

Detent lock for secure mating

Copper alloy contacts with tin-lead plating

Polyamide (PA46) and nylon 4/6 insulation

Operating temperature range of -25°C to 85°C

Current rating of 2A

Voltage rating of 100V

Mated stacking height of 8.6mm

Product Advantages

Reliable and secure mating with detent lock

Compact and space-saving design

Suitable for a variety of board-to-cable or board-to-wire applications

Excellent thermal and electrical performance

Key Reasons to Choose This Product

Robust and durable construction for reliable performance

Versatile design to accommodate various application requirements

Cost-effective solution for board-to-cable or board-to-wire connectivity

Trusted JST brand quality and reliability

Quality and Safety Features

UL94 V-0 flammability rating

Tin-lead plated contacts for enhanced corrosion resistance

Polyamide (PA46) and nylon 4/6 insulation materials for high temperature and chemical resistance

Compatibility

This connector is compatible with other JST PH series components and can be used in a wide range of electronic and electrical applications.

Application Areas

Industrial control equipment

Automation and instrumentation

Power supplies

Test and measurement equipment

Telecommunications systems

Consumer electronics

Product Lifecycle

The B13B-PH-SM3-TB is an obsolete product, meaning it is no longer in active production. However, there may be equivalent or alternative models available from JST or other manufacturers. Customers are advised to contact our website's sales team for more information on current product availability and recommendations.
