Manufacturer Part Number
10M50SAE144I7G
Manufacturer
Intel
Introduction
The 10M50SAE144I7G is part of Intel's MAX® 10 series of Embedded FPGAs (Field Programmable Gate Array), designed for flexible and efficient integration into various hardware projects with its programmable logic capabilities.
Product Features and Performance
Integrated with 50,000 Logic Elements/Cells for complex digital logic designs.
Contains 3,125 Logic Array Blocks (LABs) for modular logic construction.
Offers 1,677,312 Total RAM Bits for ample data storage and manipulation.
Provides 101 I/O pins for extensive external device connectivity.
Support for 2.85V ~ 3.465V supply voltage ensures compatibility with a wide range of power supplies.

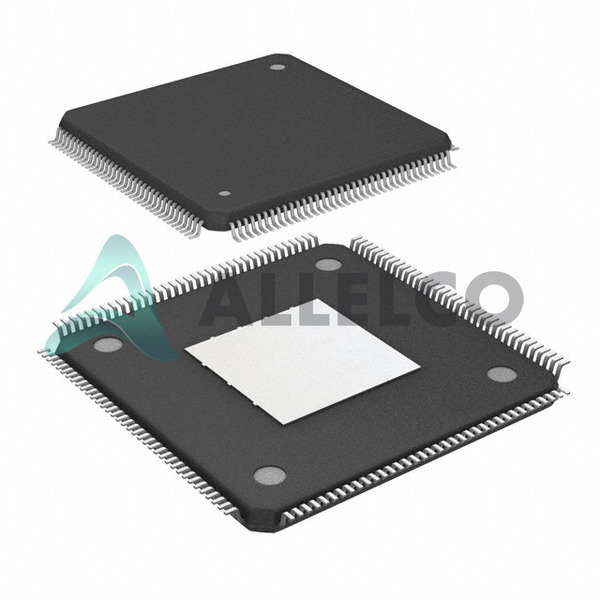

Surface Mount 144-LQFP Exposed Pad package facilitates compact board design.
Product Advantages
High density of logic elements and cells enables sophisticated digital functions in a single chip.
Ample internal memory allows for efficient data handling and storage solutions within the FPGA.
Flexible I/O count supports a wide range of peripherals and external connections.
Low to moderate supply voltage range aids in easier power management.
Key Technical Parameters
Number of LABs/CLBs: 3125
Number of Logic Elements/Cells: 50000
Total RAM Bits: 1677312
Number of I/O: 101
Voltage Supply: 2.85V ~ 3.465V
Operating Temperature: -40°C ~ 100°C (TJ)
Package / Case: 144-LQFP Exposed Pad
Quality and Safety Features
Ensures high reliability and durability under varying operational conditions, adhering to stringent industry standards for safety and quality.
Compatibility
Designed to integrate seamlessly into various electronic projects, supporting a broad range of applications with its versatile I/O and logic capabilities.
Application Areas
Ideal for use in automotive systems, industrial controls, consumer electronics, IoT devices, smart home applications, and custom hardware projects requiring programmable logic solutions.
Product Lifecycle
Currently marked as Active, indicating that it is still in production and not near discontinuation. Future replacements or upgrades may be available as technology progresses.
Several Key Reasons to Choose This Product
High logic element count and memory capacity allow for complex and versatile digital design implementations.
Broad operating temperature range suits various environments, from industrial to automotive.
Intel's reputation for quality and performance ensures a dependable and efficient FPGA solution.
Active product lifecycle status guarantees ongoing support and availability for new projects.
The flexibility offered by the 101 I/O pins enables it to fit into a wide variety of electronic applications and projects.
