Manufacturer Part Number
MCO450-22IO1
Manufacturer
Littelfuse
Introduction

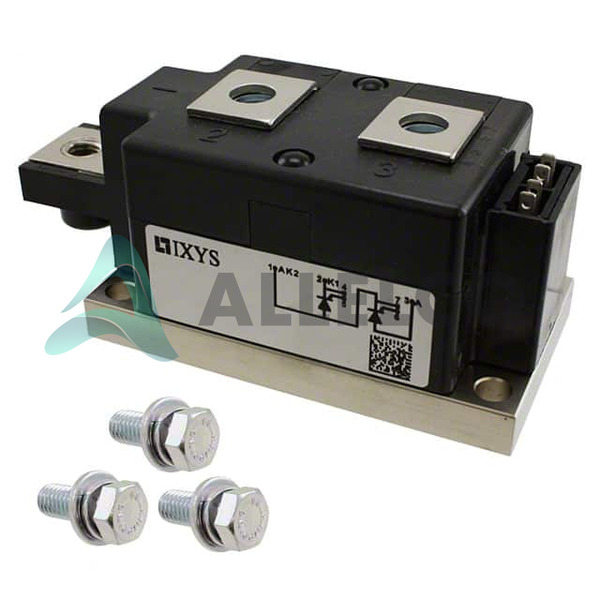

The MCO450-22IO1 is a SCR (Silicon Controlled Rectifier) module designed for high voltage and high current control applications.
Product Features and Performance
Single SCR structure
High off-state voltage of 2.2 kV
Capable of handling on-state currents up to 464 A (average) and 750 A (RMS)
Gate trigger voltage and current maxima at 2 V and 300 mA respectively
Exceptional non-repetitive surge currents capabilities: 15000A and 16000A at 50 and 60Hz respectively
Hold current up to 300 mA
Operational over a wide temperature range: -40°C to 130°C
Product Advantages
High voltage and current handling capabilities
Robust surge current withstand
Wide operational temperature range supports various working environments
Simplifies design considerations due to single SCR structure
Key Technical Parameters
Voltage Off State: 2.2 kV
Current On State (It (AV)) (Max): 464 A
Current On State (It (RMS)) (Max): 750 A
Gate Trigger Voltage/Current (Max): 2 V / 300 mA
Non Rep. Surge Current 50/60Hz: 15000A / 16000A
Operating Temperature Range: -40°C ~ 130°C
Quality and Safety Features
Engineered to meet stringent quality and safety standards
Durable design to withstand harsh conditions and high stress environments
Compatibility
Compatible with a wide range of high voltage direct current (HVDC) applications and equipment
Designed for chassis mount, ensuring easy integration into systems
Application Areas
Power conversion and control
Motor drives
HVDC systems
Industrial automation
Energy management and distribution
Product Lifecycle
Currently in active status with no immediate discontinuation planned
Future updates or upgrades will maintain compatibility and performance enhancements
Several Key Reasons to Choose This Product
High reliability in handling high voltage and current
Versatile across a range of high power applications
Proven performance from Littelfuse, a leader in circuit protection
Comprehensive technical support and documentation available
Future-proof design with ongoing lifecycle support
