HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersMC9S08DV60AMLC

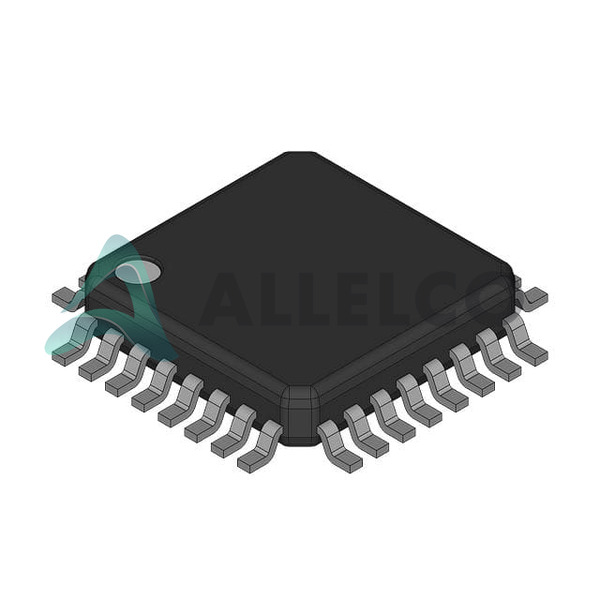

MC9S08DV60AMLC Image
MC9S08DV60AMLC Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

MC9S08DV60AMLC - Freescale Semiconductor

Manufacturer Part Number
MC9S08DV60AMLC
Manufacturer
Freescale Semiconductor, Inc. (NXP Semiconductors)
Allelco Part Number
32D-MC9S08DV60AMLC
ECAD Model
Parts Description
IC MCU 8BIT 60KB FLASH 32LQFP
Package
32-LQFP
Data sheet
MC9S08DV60AMLC.pdf
Compare
Our certification
In stock: 7610

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

MC9S08DV60AMLC Tech Specifications
Freescale Semiconductor - MC9S08DV60AMLC technical specifications, attributes, parameters and parts with similar specifications to Freescale Semiconductor - MC9S08DV60AMLC

Product Attribute Attribute Value
Manufacturer Freescale Semiconductor, Inc. (NXP Semiconductors)
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Supplier Device Package 32-LQFP (7x7)
Speed 40MHz
Series S08
RAM Size 3K x 8
Program Memory Type FLASH
Program Memory Size 60KB (60K x 8)
Peripherals LVD, POR, PWM, WDT
Package / Case 32-LQFP
Package Bulk
Product Attribute Attribute Value
Oscillator Type External
Operating Temperature -40°C ~ 125°C (TA)
Number of I/O 53
Mounting Type Surface Mount
EEPROM Size -
Data Converters A/D 16x12b
Core Size 8-Bit
Core Processor S08
Connectivity CANbus, I²C, LINbus, SCI, SPI
Base Product Number MC9S08

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status
Moisture Sensitivity Level (MSL)
REACH Status
ECCN 3A991A2
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

MC9S08DV60AMLC

Manufacturer

NXP Semiconductors

Introduction

The MC9S08DV60AMLC is a robust 8-bit microcontroller from NXP's S08 series designed for embedded applications.

Product Features and Performance

8-Bit S08 Central Processing Unit

High speed up to 40MHz

Extensive connectivity with CANbus, I2C, LINbus, SCI, SPI

Includes Low Voltage Detect, Power-On Reset, Pulse Width Modulation, Watchdog Timer

Generous 53 Input/Output pins

60KB Flash memory

3KB RAM

16-channel, 12-bit Analog-to-Digital Converters

External Oscillator support

Product Advantages

Ample program memory and RAM for complex tasks

Diverse set of peripherals enhances functionality

Wide operating temperature range suited for harsh environments

Flexible power supply requirements

Key Technical Parameters

Core: S08

Core Size: 8-Bit

Speed: 40MHz

Number of I/O: 53

Program Memory Size: 60KB

RAM Size: 3K x 8

Voltage Supply: 2.7V ~ 5.5V

A/D Converters: 16x12b

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

Built-in LVD and POR for system protection

WDT to prevent system hang-ups

Compatibility

Universal 32-LQFP (7x7) Surface Mount Package

Compatible with standard S08 development tools and software

Application Areas

Industrial control systems

Automotive systems

Consumer electronics

Home automation

Product Lifecycle

Active status, not nearing discontinuation

Ongoing support and availability of replacements and upgrades

Several Key Reasons to Choose This Product

NXP's reputation for reliable and robust microcontrollers

High integration reduces need for external components

Versatile connectivity options for various applications

High-performance CPU suitable for demanding tasks

Long operating life and manufacturer support

Parts with Similar Specifications

The three parts on the right have similar specifications to Freescale Semiconductor MC9S08DV60AMLC

Product Attribute MC9S08DV60AMLC MC9S08DZ128CLF MC9S08DV60ACLH MC9S08DV60AMLH
Part Number MC9S08DV60AMLC MC9S08DZ128CLF MC9S08DV60ACLH MC9S08DV60AMLH
Manufacturer Freescale Semiconductor Freescale Semiconductor NXP USA Inc. Freescale Semiconductor
Data Converters A/D 16x12b A/D 16x12b A/D 16x12b A/D 16x12b
Supplier Device Package 32-LQFP (7x7) 48-LQFP (7x7) 64-LQFP (10x10) 64-LQFP (10x10)
Core Size 8-Bit 8-Bit 8-Bit 8-Bit
Series S08 S08 S08 S08
Number of I/O 53 39 53 53
Package Bulk Bulk Tray Tray
RAM Size 3K x 8 8K x 8 3K x 8 3K x 8
Speed 40MHz 40MHz 40MHz 40MHz
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Package / Case 32-LQFP 48-LQFP 64-LQFP 64-LQFP
Connectivity CANbus, I²C, LINbus, SCI, SPI CANbus, I²C, LINbus, SCI, SPI CANbus, I²C, LINbus, SCI, SPI CANbus, I²C, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT
Oscillator Type External External External External
Program Memory Type FLASH FLASH FLASH FLASH
Program Memory Size 60KB (60K x 8) 128KB (128K x 8) 60KB (60K x 8) 60KB (60K x 8)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Core Processor S08 S08 S08 S08
Operating Temperature -40°C ~ 125°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 125°C (TA)
Base Product Number MC9S08 MC9S08 MC9S08 MC9S08
EEPROM Size - 2K x 8 - -

Customers Also Interested in

Recommended Products

Shipment

Delivery Time
