GBPC12005 - Fairchild Semiconductor

Manufacturer Part Number

GBPC12005

Manufacturer

onsemi

Introduction

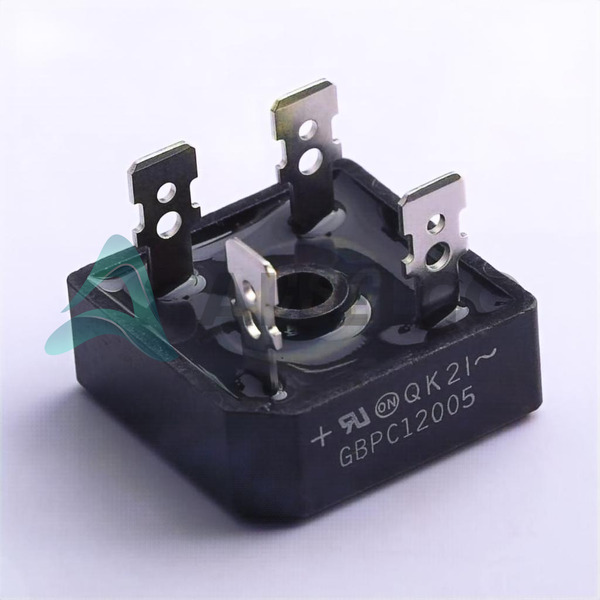

The GBPC12005 is a single-phase bridge rectifier diode from onsemi, designed for high-power applications. It offers a peak reverse voltage of 50V and an average rectified current of 12A, making it suitable for a wide range of industrial and consumer electronics applications.

Product Features and Performance

Single-phase bridge rectifier diode

Peak reverse voltage of 50V

Average rectified current of 12A

Forward voltage drop (Vf) of 1.1V @ 6A

Reverse leakage current of 5μA @ 50V

Operating temperature range of -55°C to 150°C

Compact 4-Square, GBPC package

Product Advantages

High power handling capability

Reliable and robust design

Efficient power conversion

Wide operating temperature range

Key Reasons to Choose This Product

Proven performance and reliability

Versatile design for various applications

Cost-effective solution for high-power needs

Compliance with industry standards

Quality and Safety Features

Designed and manufactured to meet industry quality and safety standards

Robust construction for reliable operation

Compatibility

The GBPC12005 is compatible with a wide range of industrial and consumer electronics applications that require high-power single-phase bridge rectification.

Application Areas

Power supplies

Motor drives

Welding equipment

Battery chargers

Household appliances

Product Lifecycle

The GBPC12005 is an active product and is not nearing discontinuation.

There are equivalent or alternative models available from onsemi, such as the GBPC1202 and GBPC1205.

For more information or assistance in selecting the right product, please contact our sales team through our website.
