PAM2804AAB010 - Diodes Incorporated

Manufacturer Part Number

PAM2804AAB010

Manufacturer

Diodes

Introduction

The PAM2804AAB010 is a DC DC step-down (buck) LED driver optimized for powering LEDs and managing power requirements within electronic systems.

Product Features and Performance

High-efficiency step-down (buck) regulator

Internal power switch included

Single output with a 1A current capacity

Operates at a high switching frequency of 1.5MHz

Designed for easy implementation with surface mount technology

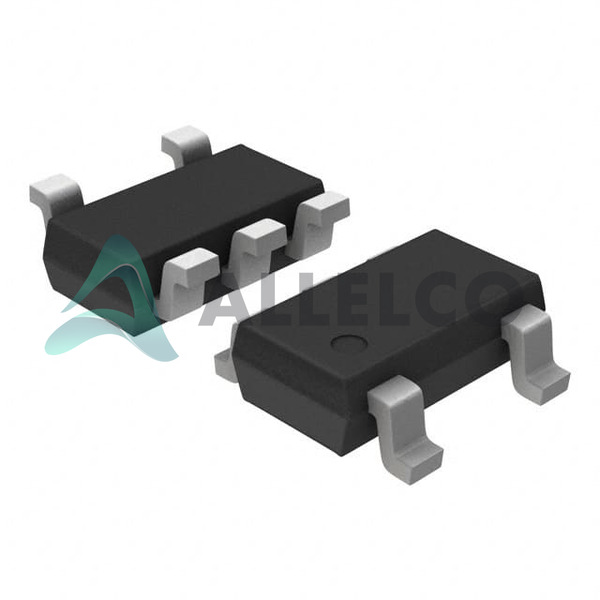

Available in a compact SOT-23-5 Thin, TSOT-23-5 package

Product Advantages

Capable of operating from a supply voltage as low as 2.5V up to 6V

Sustains a wide operating temperature range from -40°C to 85°C

Saves board space with its small form factor

High switching frequency allows for smaller external components

Key Technical Parameters

Voltage - Supply (Min): 2.5V

Voltage - Supply (Max): 6V

Current - Output / Channel: 1A

Frequency: 1.5MHz

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Quality and Safety Features

Built to withstand industrial temperature ranges

Integrated safety features inherent to its design, maintaining LED driver reliability

Compatibility

Compatible with surface mount technologies

Suitable for a range of single LED driving applications due to its versatile input voltage range and output current capabilities

Application Areas

Ideal for portable and battery-powered applications due to its power efficiency and compact size

Product Lifecycle

Product Status: Active

Not reported as nearing discontinuation, replacements or upgrades should be available when needed

Several Key Reasons to Choose This Product

High efficiency for extended battery life in portable applications

Flexible power supply range accommodating various system designs

Small footprint for space-constrained applications

1A output current suitable for driving high power LEDs

Robust performance in a wide temperature range suitable for industrial applications

High switching frequency minimizes the size of external components needed, reducing overall solution size and cost

Active product status suggests ongoing manufacturer support and availability
