Specifications

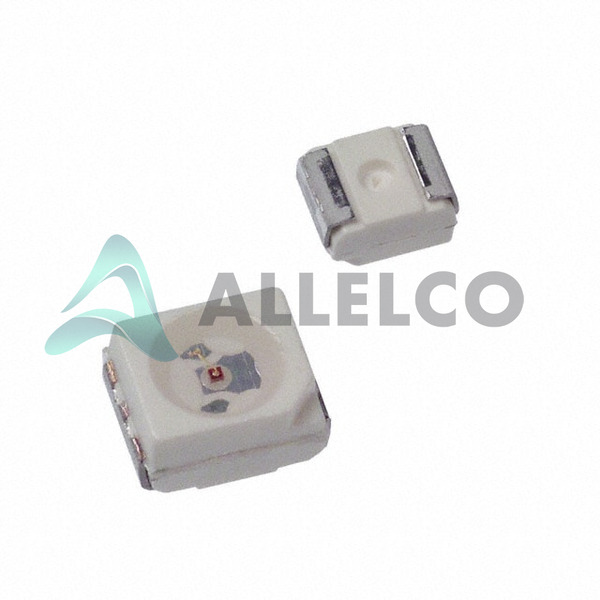

HSMM-A101-R8PJ1 Tech Specifications
Broadcom Limited - HSMM-A101-R8PJ1 technical specifications, attributes, parameters and parts with similar specifications to Broadcom Limited - HSMM-A101-R8PJ1
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Avago Technologies (Broadcom) |
|
| Wavelength - Peak |
523nm |
|
| Wavelength - Dominant |
525nm |
|
| Voltage - Forward (Vf) (Typ) |
3.4V |
|
| Viewing Angle |
120° |
|
| Supplier Device Package |
2-PLCC |
|
| Size / Dimension |
3.20mm L x 2.80mm W |
|
| Series |
- |
|
| Package / Case |
2-PLCC |
|
| Package |
Tape & Reel (TR) |
|
| Mounting Type |
Surface Mount |
|
| Product Attribute |
Attribute Value
| |
| Millicandela Rating |
- |
|
| Lens Transparency |
Clear |
|
| Lens Style |
Round with Flat Top |
|
| Lens Size |
2.20mm Dia |
|
| Lens Color |
Colorless |
|
| Height (Max) |
2.10mm |
|
| Features |
- |
|
| Current - Test |
20mA |
|
| Configuration |
Standard |
|
| Color |
Green |
|
| Base Product Number |
HSMM-A101 |
|
