ATMEGA16HVB-8X3 - Atmel

Manufacturer Part Number

ATMEGA16HVB-8X3

Manufacturer

Microchip Technology

Introduction

The ATMEGA16HVB-8X3 is an 8-bit AVR microcontroller designed for complex embedded systems.

Product Features and Performance

8-Bit AVR Core Processor

8MHz Maximum Clock Speed

I2C and SPI Connectivity Options

Power-On Reset (POR) and Watchdog Timer (WDT)

17 Programmable I/O Lines

16KB of In-System Programmable FLASH Memory

512 Bytes of EEPROM

1KB Internal SRAM

7-Channel 12-bit Analog-to-Digital Converter

Internal Oscillator

Product Advantages

Robust Instruction Set for Complex Operations

Low Power Consumption

Supports Advanced Communication Protocols

Large Program Memory Facilitates Feature-Rich Applications

Inbuilt Safety Features like POR and WDT

Ease of Integration with Various Peripherals and Sensors

Key Technical Parameters

Core Size: 8-Bit

Speed: 8MHz

Number of I/O: 17

Program Memory Size: 16KB (8K x 16)

EEPROM Size: 512 x 8

RAM Size: 1K x 8

Voltage Supply Range: 4V to 25V

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

Extended Temperature Range for Harsh Environments

Watchdog Timer for System Stability

Power-On Reset facilitates safe startup

Compatibility

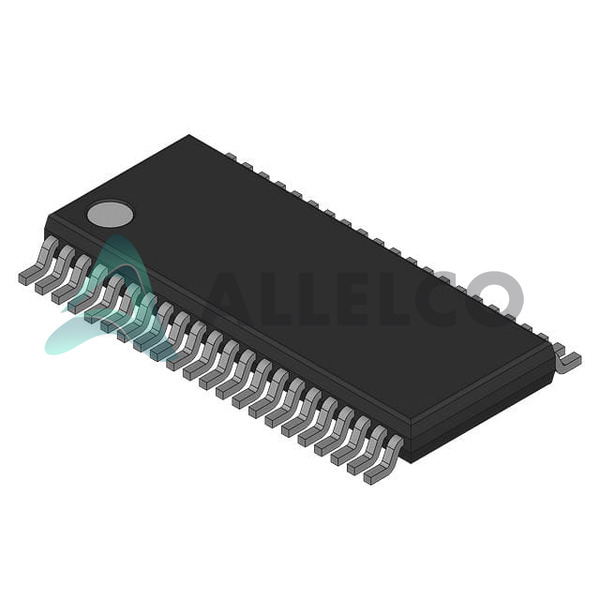

Compatible with 44-TSSOP Mounting

I2C and SPI for Communication with Other Devices

Interoperable with Other AVR Series Microcontrollers

Application Areas

Industrial Control Systems

Consumer Electronics

Automotive Systems

IoT Devices

Product Lifecycle

Obsolete Status

Consider alternatives or consult with the manufacturer for replacement options

Key Reasons to Choose This Product

Efficient Performance for Real-Time Applications

Durable and Reliable for Industrial Usage

Scalable Design for Future Enhancements

Broad Voltage Operation Range Allows Versatile Power Supply Options

Suitable for Prototyping and Mass Production

Integrated Features Reduce External Component Requirements
