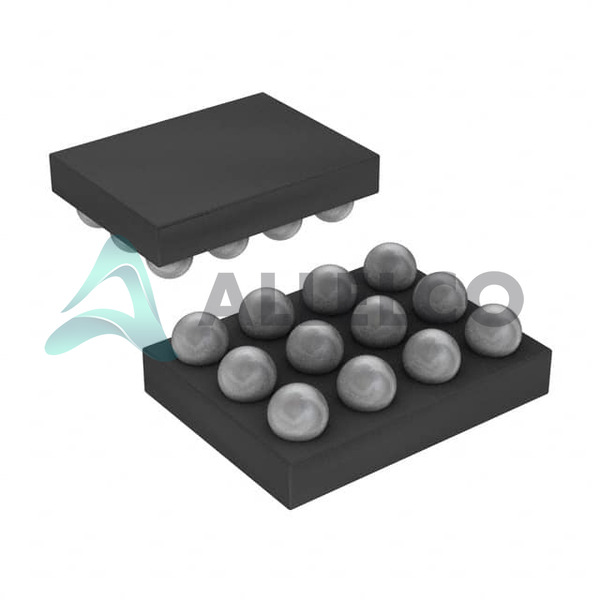

MAX4684EBC+T - Analog Devices Inc./Maxim Integrated

Manufacturer Part Number

MAX4684EBC+T

Manufacturer

Analog Devices

Introduction

The MAX4684EBC+T is an SPDT analog switch with high-performance capabilities packaged for efficient surface mounting suitable for a wide range of applications.

Product Features and Performance

SPDT switch configuration

High-speed switching with switch times of 50ns (on) and 30ns (off)

Low on-state resistance of 800mOhm

Channel-to-Channel Matching at 60mOhm

Single supply voltage ranging from 1.8V to 5.5V

Dual supply voltage not applicable

High off-isolation of crosstalk -68dB at 100kHz

Small signal charge injection of 200pC

Low channel capacitance of 84pF when off

Minimal leakage current of 1nA when off

Product Advantages

Provides fast and reliable switching capability

Low power consumption and high efficiency

Excellent analog signal integrity with low distortion

Enhances battery life due to low leakage and charge injection

Compatible with a broad range of supply voltages, increasing versatility

Key Technical Parameters

Voltage Supply, Single (V+): 1.8V ~ 5.5V

Channel-to-Channel Matching (ΔRon): 60mOhm

On-State Resistance (Max): 800mOhm

Switch Time (Ton, Toff) (Max): 50ns, 30ns

Current Leakage (IS(off)) (Max): 1nA

Crosstalk: -68dB @ 100kHz

Quality and Safety Features

Built for high durability and reliability

Optimized for low electromagnetic interference

Manufactured under strict compliance with international standards

Compatibility

Suitable for integration in multiple digital and analog circuits

Flexible for use in single-ended or differential applications

Compatible with various signal types

Application Areas

Communication equipment

Test equipment

Consumer electronics

Medical instruments

Product Lifecycle

Product Status: Active

Not nearing discontinuation

Upgrades and replacements are available

Several Key Reasons to Choose This Product

Extremely fast switching times enable high-speed signal processing

Exceptional signal integrity makes it ideal for sensitive analog applications

Versatile power compatibility accommodates diverse system designs

Minimized power loss ensures efficiency

Durable and reliable for use in commercial and industrial environments
