Specifications

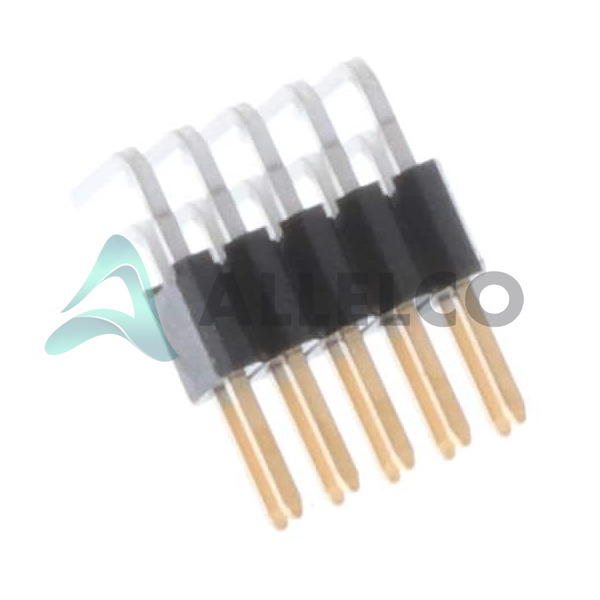

20021112-00010T4LF Tech Specifications
Amphenol ICC (FCI) - 20021112-00010T4LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol ICC (FCI) - 20021112-00010T4LF
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Amphenol Aorora |
|
| Voltage Rating |
125VAC |
|
| Termination |
Solder |
|
| Style |
Board to Board |
|
| Shrouding |
Unshrouded |
|
| Series |
Minitek127® 1.27mm |
|
| Row Spacing - Mating |
0.050" (1.27mm) |
|
| Pitch - Mating |
0.050" (1.27mm) |
|
| Package |
Tube |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
-55°C ~ 125°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
10 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Thermoplastic |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.135" (3.43mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
1A per Contact |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Copper Alloy |
|
| Contact Length - Post |
0.106" (2.69mm) |
|
| Contact Length - Mating |
0.120" (3.05mm) |
|
| Contact Finish Thickness - Post |
50.0µin (1.27µm) |
|
| Contact Finish Thickness - Mating |
10.0µin (0.25µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Base Product Number |
20021112 |
|
| Applications |
- |
|
