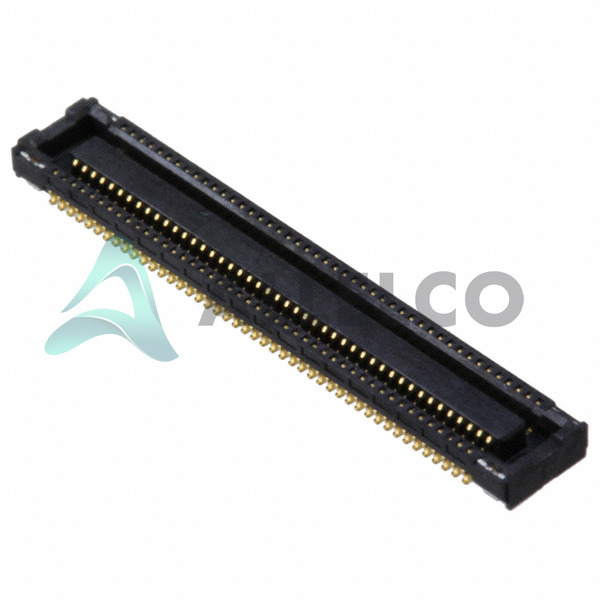

51338-0974 Tech Specifications
Affinity Medical Technologies - a Molex company - 51338-0974 technical specifications, attributes, parameters and parts with similar specifications to Affinity Medical Technologies - a Molex company - 51338-0974
Product Attribute | Attribute Value | |
---|---|---|
Manufacturer | Molex | |
Series | SlimStack 51338 | |
Pitch | 0.016" (0.40mm) | |
Packaging | Tape & Reel (TR) | |
Other Names | 051338-0974 0513380974 51338-0974-TR625 WM8962TR |
|
Number of Rows | 2 | |
Number of Positions | 90 | |
Mounting Type | Surface Mount | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Product Attribute | Attribute Value | |
---|---|---|
Mated Stacking Heights | 1.5mm | |
Manufacturer Standard Lead Time | 10 Weeks | |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
Height Above Board | 0.053" (1.35mm) | |
Features | Solder Retention | |
Detailed Description | 90 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | |
Contact Finish Thickness | 8.00µin (0.203µm) | |
Contact Finish | Gold | |
Connector Type | Receptacle, Center Strip Contacts |
The three parts on the right have similar specifications to Affinity Medical Technologies - a Molex company 51338-0974
Product Attribute | ![]() |
![]() |
![]() |
![]() |
---|---|---|---|---|
Part Number | 51338-0974 | 51338-0874 | 51338-2474 | 51338-0674 |
Manufacturer | Affinity Medical Technologies - a Molex company | Affinity Medical Technologies - a Molex company | Affinity Medical Technologies - a Molex company | Molex |
Mated Stacking Heights | 1.5mm | 1.5mm | 1.5mm | - |
Packaging | Tape & Reel (TR) | Cut Tape (CT) | Cut Tape (CT) | - |
Series | SlimStack 51338 | SlimStack 51338 | SlimStack 51338 | * |
Pitch | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | - |
Contact Finish | Gold | Gold | Gold | - |
Other Names | 051338-0974 0513380974 51338-0974-TR625 WM8962TR |
WM8963CT | WM8960CT | - |
Detailed Description | 90 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | 80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | 24 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | - |
Number of Rows | 2 | 2 | 2 | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Lead free / RoHS Compliant | Lead free / RoHS Compliant | - |
Mounting Type | Surface Mount | Surface Mount | Surface Mount | - |
Manufacturer Standard Lead Time | 10 Weeks | 10 Weeks | 10 Weeks | - |
Number of Positions | 90 | 80 | 24 | - |
Height Above Board | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) | - |
Connector Type | Receptacle, Center Strip Contacts | Receptacle, Center Strip Contacts | Receptacle, Center Strip Contacts | - |
Features | Solder Retention | Solder Retention | Solder Retention | - |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | - |
Contact Finish Thickness | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | - |
Download 51338-0974 pdf datasheets and Affinity Medical Technologies - a Molex company documentation for 51338-0974 - Affinity Medical Technologies - a Molex company.
