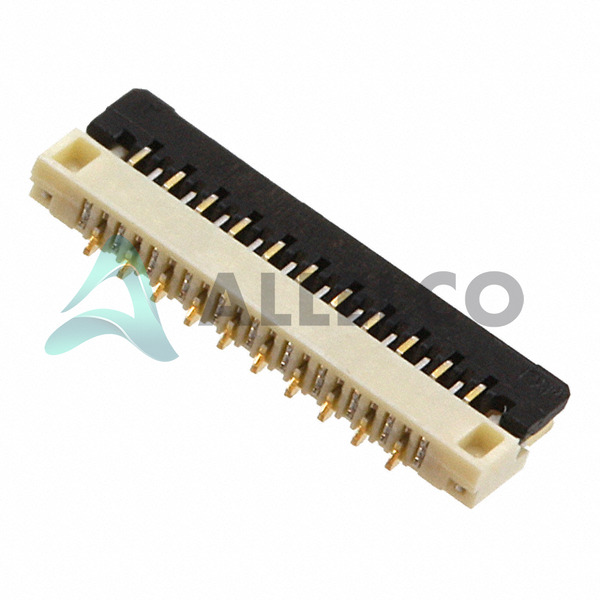

503566-2100 Tech Specifications
Affinity Medical Technologies - a Molex company - 503566-2100 technical specifications, attributes, parameters and parts with similar specifications to Affinity Medical Technologies - a Molex company - 503566-2100
Product Attribute | Attribute Value | |
---|---|---|
Manufacturer | Molex | |
Voltage Rating | 50V | |
Termination | Solder | |
Series | Easy-On 503566 | |
Pitch | 0.012" (0.30mm) | |
Packaging | Original-Reel® | |
Other Names | WM8979DKR | |
Operating Temperature | -40°C ~ 85°C | |
Number of Positions | 21 | |
Mounting Type | Surface Mount, Right Angle | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
Mating Cycles | 10 | |
Material Flammability Rating | UL94 V-0, UL94 HB | |
Manufacturer Standard Lead Time | 11 Weeks | |
Locking Feature | Flip Lock | |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Product Attribute | Attribute Value | |
---|---|---|
Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
Housing Color | White | |
Height Above Board | 0.037" (0.95mm) | |
Flat Flex Type | FPC | |
Features | Solder Retention | |
FFC, FCB Thickness | 0.20mm | |
Detailed Description | 21 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | |
Current Rating | 0.2A | |
Contact Material | Phosphor Bronze | |
Contact Finish Thickness | - | |
Contact Finish | Gold | |
Connector/Contact Type | Contacts, Bottom | |
Cable End Type | Tabbed | |
Actuator Material | Polyamide (PA), Nylon, Glass Filled | |
Actuator Color | Black |
The three parts on the right have similar specifications to Affinity Medical Technologies - a Molex company 503566-2100
Product Attribute | ![]() |
![]() |
![]() |
|
---|---|---|---|---|
Part Number | 503566-2100 | 5035661300 | 5035662100 | 503566-2700 |
Manufacturer | Affinity Medical Technologies - a Molex company | Molex | Molex | Affinity Medical Technologies - a Molex company |
Series | Easy-On 503566 | Easy-On 503566 | Easy-On 503566 | Easy-On 503566 |
Pitch | 0.012" (0.30mm) | 0.012" (0.30mm) | 0.012' (0.30mm) | 0.012" (0.30mm) |
Termination | Solder | Solder | Solder | Solder |
Number of Positions | 21 | 13 | 21 | 27 |
Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
Packaging | Original-Reel® | - | - | Tape & Reel (TR) |
Height Above Board | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037' (0.95mm) | 0.037" (0.95mm) |
Contact Finish | Gold | Gold | Gold | Gold |
Detailed Description | 21 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | - | - | 27 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
Contact Finish Thickness | - | - | - | - |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | - | - | 1 (Unlimited) |
FFC, FCB Thickness | 0.20mm | 0.20mm | 0.20mm | 0.20mm |
Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Liquid Crystal Polymer (LCP), Glass Filled | Liquid Crystal Polymer (LCP), Glass Filled | Liquid Crystal Polymer (LCP), Glass Filled |
Connector/Contact Type | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom |
Locking Feature | Flip Lock | Flip Lock | Flip Lock | Flip Lock |
Material Flammability Rating | UL94 V-0, UL94 HB | UL94 V-0, UL94 HB | UL94 V-0, UL94 HB | UL94 V-0, UL94 HB |
Cable End Type | Tabbed | Tabbed | Tabbed | Tabbed |
Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
Voltage Rating | 50V | 50V | 50V | 50V |
Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
Manufacturer Standard Lead Time | 11 Weeks | - | - | 11 Weeks |
Flat Flex Type | FPC | FPC | FPC | FPC |
Actuator Color | Black | Black | Black | Black |
Features | Solder Retention | Solder Retention | Solder Retention | Solder Retention |
Other Names | WM8979DKR | - | - | 503566-2700-TR750 5035662700 WM8976TR |
Mating Cycles | 10 | 10 | 10 | 10 |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | - | - | Lead free / RoHS Compliant |
Actuator Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |
Current Rating | 0.2A | - | - | 0.2A |
Housing Color | White | White | White | White |
