HomeProductsConnectors, InterconnectsFFC, FPC (Flat Flexible) Connectors501912-4590

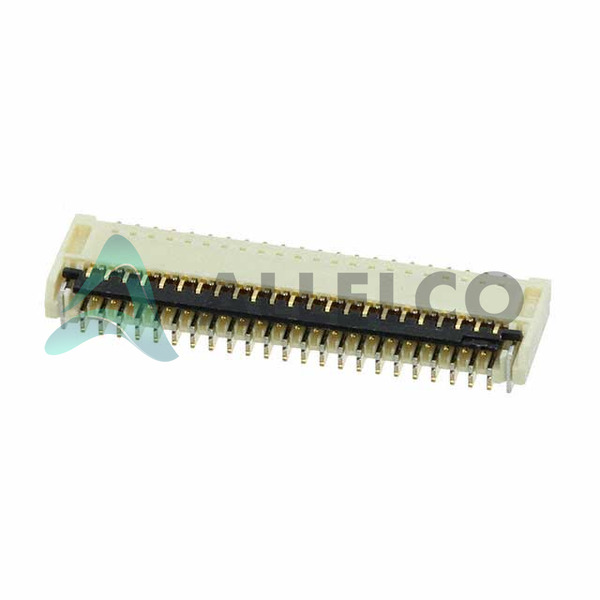

501912-4590 Image
Image may be representation.
See specifications for product details.

501912-4590 - Affinity Medical Technologies - a Molex company

Manufacturer Part Number
501912-4590
Manufacturer
Molex
Allelco Part Number
32D-501912-4590
ECAD Model
Parts Description
CONN FPC BOTTOM 45POS 0.30MM R/A
Detailed Description
Package
Data sheet
501912-4590.pdf
RoHs Status
Lead free / RoHS Compliant
In stock: 23558

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

501912-4590 Tech Specifications
Affinity Medical Technologies - a Molex company - 501912-4590 technical specifications, attributes, parameters and parts with similar specifications to Affinity Medical Technologies - a Molex company - 501912-4590

Product Attribute Attribute Value
Manufacturer Molex
Voltage Rating 50V
Termination Solder
Series Easy-On 501912
Pitch 0.012" (0.30mm)
Packaging Bulk
Other Names 0501912-4590-C
05019124590
05019124590-C
501912-4510
501912-4590-C
5019124590
5019124590-C
WM2219

Operating Temperature -20°C ~ 85°C
Number of Positions 45
Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Cycles 20
Material Flammability Rating UL94 V-0
Manufacturer Standard Lead Time 10 Weeks
Locking Feature Flip Lock
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Product Attribute Attribute Value
Housing Material Polymer, Glass Filled
Housing Color -
Height Above Board -
Flat Flex Type FPC
Features Solder Retention
FFC, FCB Thickness 0.20mm
Detailed Description 45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating 0.2A
Contact Material Copper Alloy
Contact Finish Thickness -
Contact Finish Gold
Connector/Contact Type Contacts, Bottom
Cable End Type Tapered
Actuator Material Polymer, Glass Filled
Actuator Color -

Parts with Similar Specifications

The three parts on the right have similar specifications to Affinity Medical Technologies - a Molex company 501912-4590

Product Attribute 501912-4590 5019122790 501912-3990 501912-3390
Part Number 501912-4590 5019122790 501912-3990 501912-3390
Manufacturer Affinity Medical Technologies - a Molex company Molex Affinity Medical Technologies - a Molex company Molex
Contact Finish Thickness - - - -
Number of Positions 45 27 39 -
Detailed Description 45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle - 39 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle -
Manufacturer Standard Lead Time 10 Weeks - 11 Weeks -
Actuator Material Polymer, Glass Filled Polymer, Glass Filled Polymer, Glass Filled -
FFC, FCB Thickness 0.20mm 0.20mm 0.20mm -
Contact Finish Gold Gold Gold -
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle -
Locking Feature Flip Lock Flip Lock Flip Lock -
Actuator Color - - - -
Height Above Board - - - -
Pitch 0.012" (0.30mm) 0.012' (0.30mm) 0.012" (0.30mm) -
Features Solder Retention Solder Retention Solder Retention -
Other Names 0501912-4590-C
05019124590
05019124590-C
501912-4510
501912-4590-C
5019124590
5019124590-C
WM2219
- 0501912-3990
0501912-3990-C
05019123990
05019123990-C
501912-3910
501912-3990-C
501912-3990-ND
5019123990
5019123990-C
WM2217TR
-
Lead Free Status / RoHS Status Lead free / RoHS Compliant - Lead free / RoHS Compliant -
Operating Temperature -20°C ~ 85°C -20°C ~ 85°C -20°C ~ 85°C -
Housing Color - - - -
Current Rating 0.2A - 0.2A -
Mating Cycles 20 20 20 -
Contact Material Copper Alloy Copper Alloy Copper Alloy -
Voltage Rating 50V 50V 50V -
Housing Material Polymer, Glass Filled Polymer, Glass Filled Polymer, Glass Filled -
Series Easy-On 501912 Easy-On 501912 Easy-On 501912 *
Cable End Type Tapered Tapered Tapered -
Packaging Bulk - Tape & Reel (TR) -
Termination Solder Solder Solder -
Connector/Contact Type Contacts, Bottom Contacts, Bottom Contacts, Bottom -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 -
Flat Flex Type FPC FPC FPC -
Moisture Sensitivity Level (MSL) 1 (Unlimited) - 1 (Unlimited) -

501912-4590 Datasheet PDF

Download 501912-4590 pdf datasheets and Affinity Medical Technologies - a Molex company documentation for 501912-4590 - Affinity Medical Technologies - a Molex company.
