ESD9P5.0ST5G - onsemi

Manufacturer Part Number

ESD9P5.0ST5G

Manufacturer

onsemi

Introduction

The ESD9P5.0ST5G is a Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by electrostatic discharge (ESD) and other transient voltage events.

Product Features and Performance

Zener type TVS diode

Unidirectional protection channel

Low clamping voltage of 9.8V at 1A

Reverse standoff voltage of 5V maximum

Breakdown voltage minimum of 5.8V

Very low capacitance of 1.3pF at 1MHz for high-speed data line protection

Operating temperature range from -55°C to 150°C

Product Advantages

Provides reliable protection against ESD and other transient voltage events

Low capacitance ideal for protecting high-speed data lines without impairing signal integrity

Automotive grade, ensuring high reliability and performance under harsh conditions

AEC-Q101 qualified, guaranteeing automotive-industry level of quality

Key Technical Parameters

Voltage Reverse Standoff (Typ): 5V (Max)

Voltage Breakdown (Min): 5.8V

Voltage Clamping (Max) @ Ipp: 9.8V

Current Peak Pulse (10/1000µs): 1A (8/20µs)

Capacitance @ Frequency: 1.3pF @ 1MHz

Quality and Safety Features

Automotive grade product for high-reliability

AEC-Q101 qualification ensures stringent quality parameters

Compatibility

Compatible with high-speed data line applications

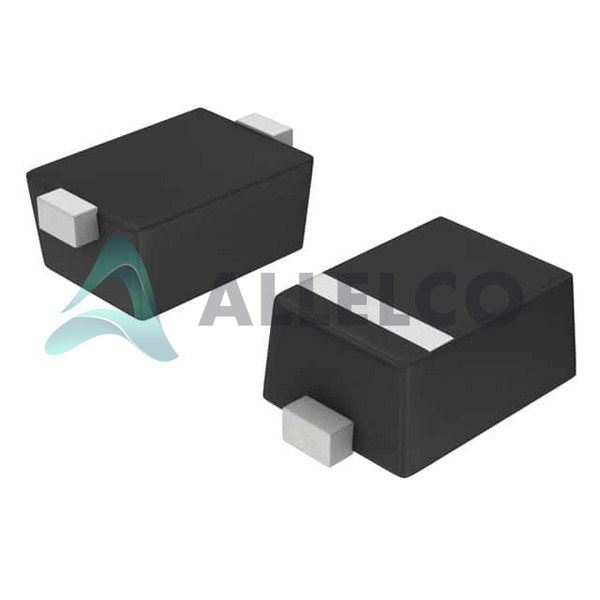

Suitable for surface mount installation in SOD-923 package

Application Areas

Ideal for protecting automotive electronics, consumer electronics, and other applications requiring ESD protection on high-speed data lines.

Product Lifecycle

Status: Active

Not nearing discontinuation, ensuring long-term availability and support

Several Key Reasons to Choose This Product

Highly effective in protecting sensitive electronics from ESD and other transient voltages.

Low capacitance, making it suitable for high-speed data line applications without compromising performance.

Automotive grade and AEC-Q101 qualification for guaranteed reliability and performance.

Broad operating temperature range suitable for various harsh environments.

Available in surface mount SOD-923 packaging, making it easy to integrate into various designs.

Active product status ensures continued availability and support for future projects.
