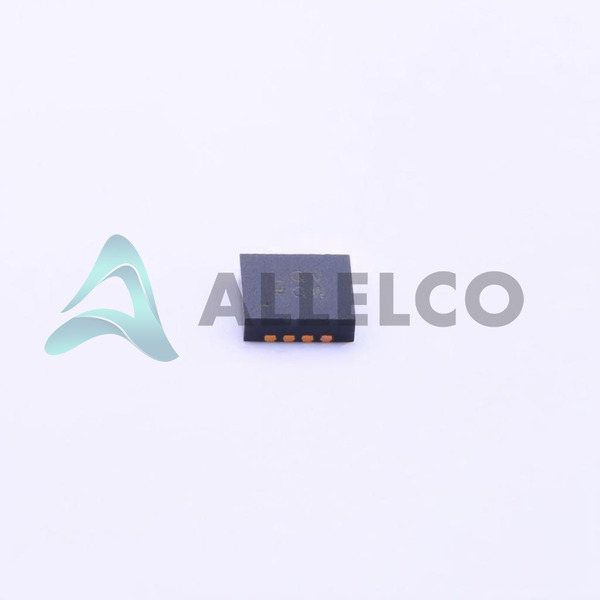

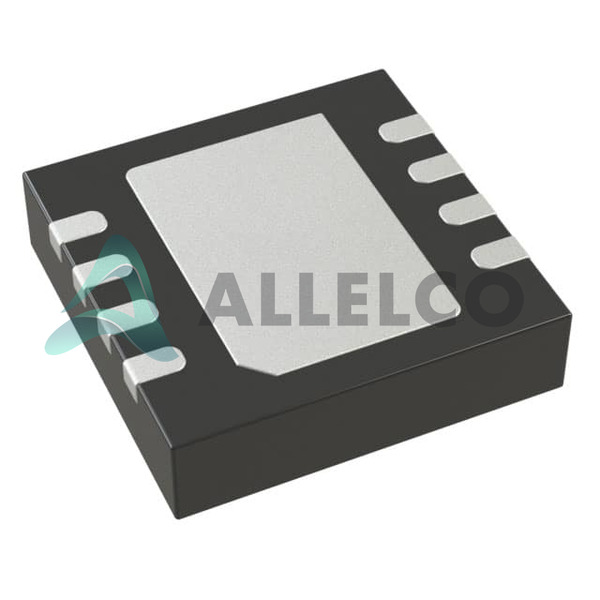

ADM7155ACPZ-04-R7 - Analog Devices Inc.

Manufacturer Part Number

ADM7155ACPZ-04-R7

Manufacturer

Analog Devices

Introduction

The ADM7155ACPZ-04-R7 is a low drop out (LDO) linear voltage regulator designed for power management applications.

Product Features and Performance

Adjustable output from 1.2V to 3.4V

Maximum input voltage of 5.5V

Output current capability of 600mA

Low dropout voltage of 0.21V at 600mA load

High PSRR of 94dB at 1kHz reducing to 57dB at 1MHz

Low quiescent current of 7 mA

Supports enable control feature

Product Advantages

High output voltage accuracy

Excellent transient response

Low noise operation

Key Technical Parameters

Voltage - Input (Max): 5.5V

Voltage - Output (Min/Fixed): 1.2V

Voltage - Output (Max): 3.4V

Voltage Dropout (Max): 0.21V @ 600mA

Current - Output: 600mA

PSRR: 94dB ~ 57dB (1kHz ~ 1MHz)

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Operating Temperature range from -40°C to 125°C

Compatibility

Compatible with surface mount technology

Application Areas

Ideal for RF and analog circuits

Suitable for medical and instrumentation applications

Product Lifecycle

Status: Active

Product is currently active with ongoing production and support.

Several Key Reasons to Choose This Product

High efficiency with low dropout performance

Robust thermal and current management features

Adjustable output suitable for various applications

High PSRR ideal for sensitive loads

Long operational life with support at extreme temperatures
