Manufacturer Part Number

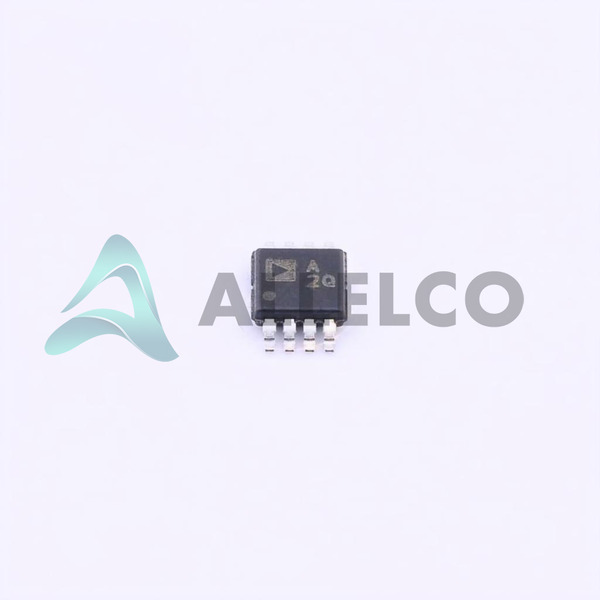

ADA4084-2ARMZ-R7
Manufacturer
Analog Devices, Inc.
Introduction
Dual operational amplifier (op-amp) integrated circuit (IC)
Designed for general-purpose instrumentation and signal conditioning applications
Product Features and Performance
Rail-to-rail input and output
Wide supply voltage range from 3V to 30V
Low input offset voltage of 60μV
High gain bandwidth of 15.9MHz
High slew rate of 4.6V/μs
Low input bias current of 140nA
Wide operating temperature range of -40°C to +125°C
Product Advantages
Excellent performance for general-purpose op-amp applications
Ability to operate from a wide range of supply voltages
Compact 8-pin MSOP package for space-constrained designs
Key Technical Parameters
Number of Circuits: 2
Gain Bandwidth Product: 15.9MHz
Supply Voltage Range: 3V to 30V
Supply Current per Channel: 625μA
Output Current per Channel: 30mA
-3dB Bandwidth: 13.9MHz
Quality and Safety Features
RoHS3 compliant
AEC-Q100 qualified for automotive applications
Compatibility
Pin-compatible with other general-purpose dual op-amp ICs in the 8-pin MSOP package
Application Areas
Instrumentation and measurement equipment
Industrial control systems
Medical equipment
Audio and consumer electronics
Product Lifecycle
Currently in production
Replacement or upgrade options available
Key Reasons to Choose This Product
Excellent performance for general-purpose op-amp applications
Wide operating voltage range and high output current capability
Compact 8-pin MSOP package for space-constrained designs
RoHS3 compliance and AEC-Q100 qualification for reliability
Compatibility with other dual op-amp ICs in the same package
