HomeProductsIntegrated Circuits (ICs)Data Acquisition - Digital to Analog Converters (DAC)AD5721RBRUZ-RL7

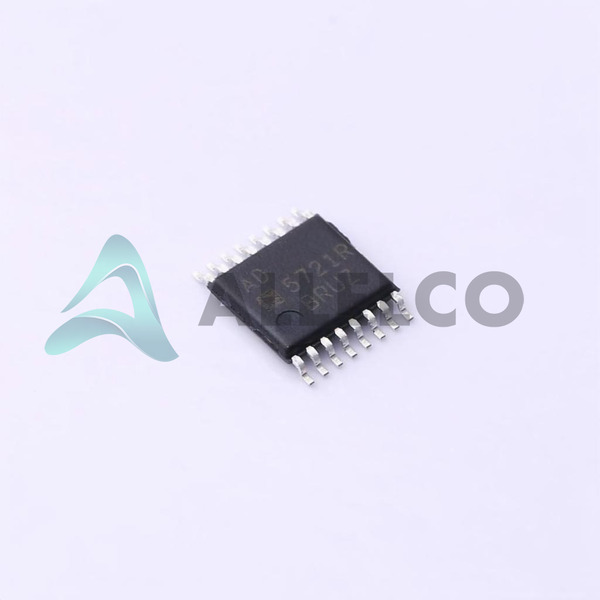

AD5721RBRUZ-RL7 Image
AD5721RBRUZ-RL7 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

AD5721RBRUZ-RL7 - Analog Devices Inc.

Manufacturer Part Number
AD5721RBRUZ-RL7
Manufacturer
Analog Devices, Inc.
Allelco Part Number
32D-AD5721RBRUZ-RL7
ECAD Model
Parts Description
IC DAC 12BIT V-OUT 16TSSOP
Package
16-TSSOP (0.173', 4.40mm Width)
Data sheet
Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 7562

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

AD5721RBRUZ-RL7 Tech Specifications
Analog Devices Inc. - AD5721RBRUZ-RL7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. - AD5721RBRUZ-RL7

Product Attribute Attribute Value
Manufacturer Analog Devices, Inc.
Voltage - Supply, Digital 1.7V ~ 5.5V
Voltage - Supply, Analog 4.75V ~ 30V
Supplier Device Package 16-TSSOP
Settling Time 12.5µs
Series -
Reference Type External, Internal
Package / Case 16-TSSOP (0.173', 4.40mm Width)
Package Tape & Reel (TR)
Output Type Voltage - Buffered
Product Attribute Attribute Value
Operating Temperature -40°C ~ 125°C
Number of D/A Converters 1
Number of Bits 12
Mounting Type Surface Mount
INL/DNL (LSB) ±0.5 (Max), ±0.5 (Max)
Differential Output No
Data Interface SPI
Base Product Number AD5721
Architecture R-2R

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

AD5721RBRUZ-RL7

Manufacturer

Analog Devices

Introduction

The AD5721RBRUZ-RL7 is a high-performance digital-to-analog converter (DAC), ideal for precise data acquisition applications.

Product Features and Performance

12-bit resolution

Single D/A Converter

Fast settling time of 12.5µs

Buffered voltage output

Communications via SPI interface

Internal and external reference support

Wide analog supply range: 4.75V to 30V

Wide digital supply range: 1.7V to 5.5V

R-2R architecture for reliable operation

High Temperature range: -40°C to 125°C

Available in a 16-TSSOP package

Product Advantages

High resolution for accurate data conversion

Quick response time improves system performance

Flexible reference options cater to varying system requirements

Wide supply range ensures compatibility with varied operational environments

Robust temperature range supports usage in extreme conditions

Key Technical Parameters

Number of Bits: 12

Settling Time: 12.5µs

Voltage Supply, Analog: 4.75V ~ 30V

Voltage Supply, Digital: 1.7V ~ 5.5V

INL/DNL (LSB): ±0.5 (Max)

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

Precision components ensure accurate and safe operations

Designed in adherence to stringent industry standards

Compatibility

SPI data interface for broad compatibility with digital systems

Application Areas

Industrial automation

Robotics

Precision instrumentation

Data acquisition systems

Medical equipment

Product Lifecycle

Active product status

Ongoing support and production ensures long-term availability

Several Key Reasons to Choose This Product

Precision 12-bit output for detailed and exact conversions

Fast converting capabilities enhancing real-time application performance

Wide operating temperature range permits deployment in harsh environments

Flexible reference and supply voltage options support a broad array of applications

Reliable communication interface through SPI ensures easy integration into digital systems

Parts with Similar Specifications

The three parts on the right have similar specifications to Analog Devices Inc. AD5721RBRUZ-RL7
